6.9.5.18.2.1 Default Speed Mode

Table 6-101, Figure 6-84, Table 6-102, and Figure 6-85 present timing requirements and switching characteristics for MMC1/MMC2 – Default Speed Mode.

Table 6-101 Timing Requirements for MMC1/MMC2 – Default Speed Mode see Figure 6-70
NO. MIN MAX UNIT
DS1 tsu(cmdV-clkH) Setup time, MMCx_CMD valid before MMCx_CLK rising edge 2.15 ns
DS2 th(clkH-cmdV) Hold time, MMCx_CMD valid after MMCx_CLK rising edge 1.67 ns
DS3 tsu(dV-clkH) Setup time, MMCx_DAT[3:0] valid before MMCx_CLK rising edge 2.15 ns
DS4 th(clkH-dV) Hold time, MMCx_DAT[3:0] valid after MMCx_CLK rising edge 1.67 ns

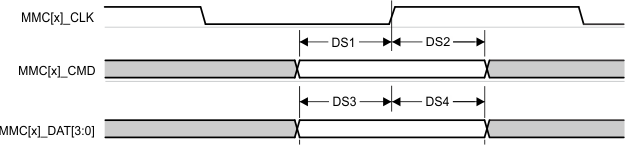

AM67 AM67A MMC1/MMC2 – Default Speed – Receive Mode Figure 6-84 MMC1/MMC2 – Default Speed – Receive Mode
Table 6-102 Switching Characteristics for MMC1/MMC2 – Default Speed Mode see Figure 6-85
NO. PARAMETER MIN MAX UNIT
fop(clk) Operating frequency, MMCx_CLK 25 MHz
DS5 tc(clk) Cycle time, MMCx_CLK 40 ns
DS6 tw(clkH) Pulse duration, MMCx_CLK high 18.7 ns
DS7 tw(clkL) Pulse duration, MMCx_CLK low 18.7 ns
DS8 td(clkL-cmdV) Delay time, MMCx_CLK falling edge to MMCx_CMD transition - 1.8 2.2 ns
DS9 td(clkL-dV) Delay time, MMCx_CLK falling edge to MMCx_DAT[3:0] transition - 1.8 2.2 ns
AM67 AM67A MMC1/MMC2 – Default Speed – Transmit Mode Figure 6-85 MMC1/MMC2 – Default Speed – Transmit Mode
