6.13 Typical Characteristics

at VDD1 = 5 V, VDD2 = 3.3 V, SHTDN = 0 V, f_IN = 10 kHz, and BW = 100 kHz (unless otherwise noted)

Figure 6-5 Input Offset Voltage vs Supply Voltage

VDD1 = 3.3 V

Figure 6-7 Input Offset Voltage vs Temperature

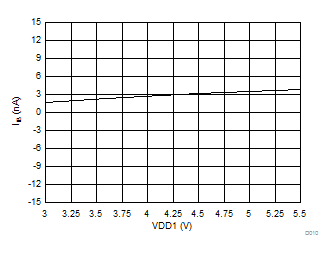

Figure 6-9 Input Bias Current vs High-Side Supply Voltage

Figure 6-11 Gain Error vs Supply Voltage

Figure 6-13 Normalized Gain vs Input Frequency

Figure 6-15 Output Voltage vs Input Voltage

Figure 6-17 Nonlinearity vs Supply Voltage

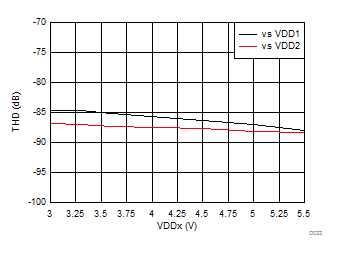

Figure 6-19 Total Harmonic Distortion vs Supply Voltage

Figure 6-21 Input-Referred Noise Density vs Frequency

Figure 6-23 Signal-to-Noise Ratio vs Supply Voltage

100-mV ripple

Figure 6-25 Power-Supply Rejection Ratio vs Ripple Frequency

Figure 6-27 Output Common-Mode Voltage vs Temperature

Figure 6-29 Output Bandwidth vs Temperature

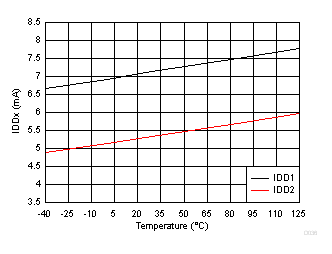

Figure 6-31 Supply Current vs Temperature

Figure 6-33 Output Rise and Fall Time vs Temperature

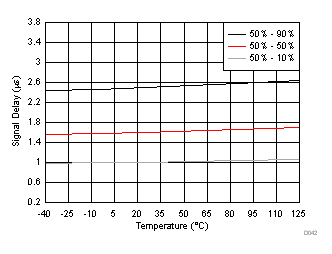

Figure 6-35 IN to OUTP, OUTN Signal Delay vs Temperature

VDD1 = 5 V

Figure 6-6 Input Offset Voltage vs Temperature

Figure 6-8 Input Capacitance vs Input Signal Frequency

Figure 6-10 Input Bias Current vs Temperature

Figure 6-12 Gain Error vs Temperature

Figure 6-14 Output Phase vs Input Frequency

Figure 6-16 Nonlinearity vs Input Voltage

Figure 6-18 Nonlinearity vs Temperature

Figure 6-20 Total Harmonic Distortion vs Temperature

Figure 6-22 Signal-to-Noise Ratio vs Input Voltage

Figure 6-24 Signal-to-Noise Ratio vs Temperature

Figure 6-26 Output Common-Mode Voltage vs Low-Side Supply Voltage

Figure 6-28 Output Bandwidth vs Low-Side Supply Voltage

Figure 6-30 Supply Current vs Supply Voltage

Figure 6-32 Output Rise and Fall Time vs Low-Side Supply Voltage

Figure 6-34 IN to OUTP, OUTN Signal Delay vs Low-Side Supply Voltage
