8.2.3 Application Curve

The effective number of bits (ENOB) is often used to compare the performance of ADCs and ΔΣ modulators. #FIG_PRS_PRV_RNB shows the ENOB of the AMC1306M25E with different oversampling ratios. By using #EQUATION-BLOCK_NLT_BQ4_YRB, this number can also be calculated from the SINAD:

Equation 3. S I N A D = 1.76   d B + 6.02   d B   ×   E N O B

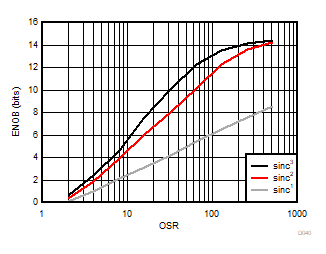

GUID-20201117-CA0I-QNMB-TD3L-FQKKLBXR3FF5-low.gif Figure 8-3 Measured Effective Number of Bits vs Oversampling Ratio
