Typical Characteristics

Data at high and low temperatures are applicable only within the recommended operating free-air temperature ranges of the various devices.

ATL431LI ATL432LI ATL431LI-S_vref_temp.gifFigure 1. Reference Voltage vs Free-Air Temperature
ATL431LI ATL432LI D003VkavsIkaATL431.gifFigure 3. Cathode Current vs Cathode Voltage
ATL431LI ATL432LI D0005Ioff.gifFigure 5. Off-State Cathode Current
vs Free-Air Temperature
ATL431LI ATL432LI D002IrefvsTemp.gifFigure 2. Reference Current vs Free-Air Temperature
ATL431LI ATL432LI D004IKAminATL431.gifFigure 4. Cathode Current vs Cathode Voltage
ATL431LI ATL432LI D0006deltav1.gifFigure 6. Ratio of Delta Reference Voltage to Delta Cathode Voltage vs Free-Air Temperature
ATL431LI ATL432LI D000gainphase.gif
Figure 7. Small-Signal Voltage Amplification
vs Frequency
ATL431LI ATL432LI D005Zkavsf.gifFigure 9. Reference Impedance vs Frequency

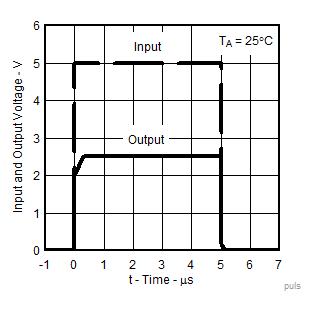

ATL431LI ATL432LI pulseresponse.gifFigure 11. Pulse Response
ATL431LI ATL432LI ATL431D010Stability1mA_v3.gif
The areas under the curves represent conditions that may cause the device to oscillate. For curves B and C, R2 and V+ are adjusted to establish the initial VKA and IKA conditions, with CL = 0. VBATT and CL then are adjusted to determine the ranges of stability.
Figure 13. Stability Boundary Conditions for All ATL431LI, ATL432LI Devices Above 1 mA
ATL431LI ATL432LI ATL431D010Stability100uA_v2.gif
The areas in-between the curves represent conditions that may cause the device to oscillate. For curves B, and C, R2 and V+ are adjusted to establish the initial VKA and IKA conditions, with CL = 0. VBATT and CL then are adjusted to determine the ranges of stability.
Figure 15. Stability Boundary Conditions for All ATL431LI, ATL432LI Devices Below 1 mA
ATL431LI ATL432LI tc_4_2_lvs543.gifFigure 8. Test Circuit for Voltage Amplification
ATL431LI ATL432LI tc_4_4_lvs543.gif
Figure 10. Test Circuit for Reference Impedance
ATL431LI ATL432LI tc_5_2_lvs543.gif
Figure 12. Test Circuit for Pulse Response
ATL431LI ATL432LI tc_6_4_lvs543.gifFigure 14. Test Circuit for Stability Boundary Conditions
ATL431LI ATL432LI tc_6_4_lvs543.gifFigure 16. Test Circuit for Stability Boundary Conditions
