7.12.5.4 Typical Interface Protocol Diagram (Peripheral Mode)

  1. Host should ensure that there is a delay of two SPI clocks between CS going low and start of SPI clock.
  2. Host should ensure that CS is toggled for every 16 bits of transfer through SPI.

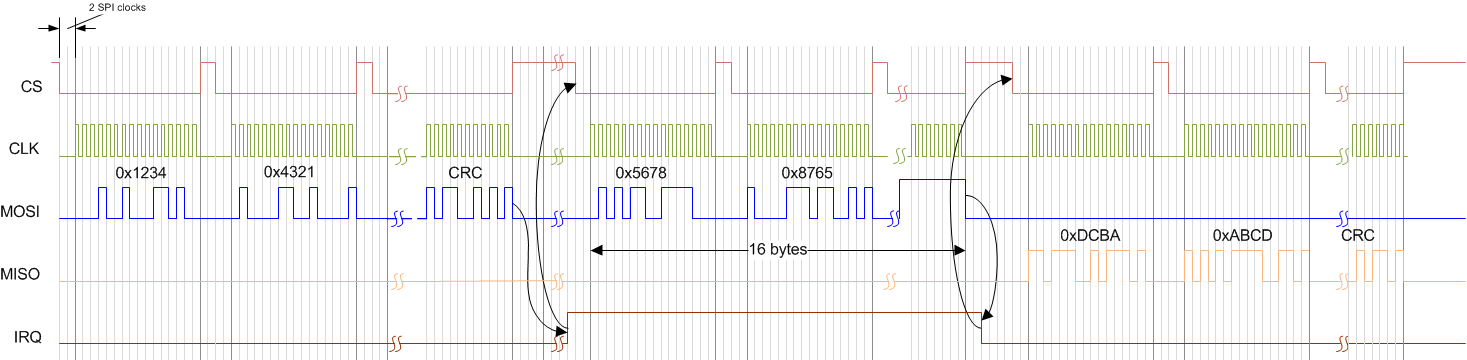

Figure 7-13 shows the SPI communication timing of the typical interface protocol.

AWR6843AOP SPI CommunicationFigure 7-13 SPI Communication
