6.3.4.3 Output Overcurrent Protection (IOUT_OCP)

During normal operation, the OUT current should be regulated to the ISET programmed value. However, if a short circuit occurs on the ISET pin, the OUT current may rise to an unintended level. If the current at the OUT pin exceeds IOUT_OCP, the device turns off after a deglitch, tOUT_OCP_DGL. The safety timer resets the count, and the device remains latched off. An input supply or TS pin toggle is required to restart operation.

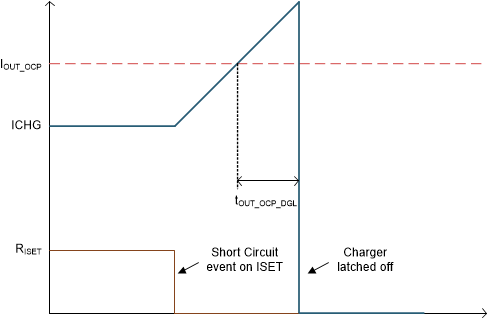

BQ25176K Overcurrent Protection Figure 6-4 Overcurrent Protection
