7.16.4 RX Performance

GUID-20231020-SS0I-R3SP-QXJ1-NNWWBPCVWF6G-low.svgFigure 7-14 Sensitivity vs. Frequency (BLE 1Mbps, 2.44GHz)
GUID-20231020-SS0I-TRJB-PNG0-NPZXH8PQPKJM-low.svgFigure 7-16 Sensitivity vs. Temperature (BLE 1Mbps, 2.44GHz)
GUID-20231020-SS0I-HCPK-W79J-6LZ3L66NLX6C-low.svgFigure 7-18 Sensitivity vs. Supply Voltage (VDDS) (BLE 1Mbps, 2.44GHz)

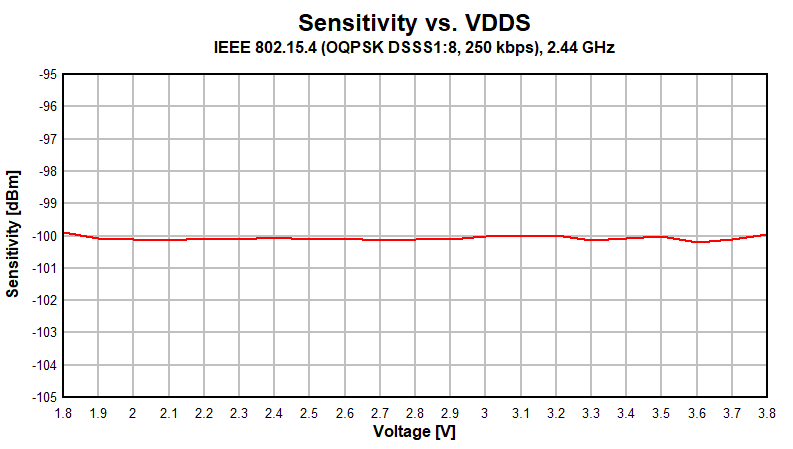

GUID-BE9DA880-6954-446F-96C6-90CF66470F21-low.gifFigure 7-20 Sensitivity vs. Supply Voltage (VDDS) (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)

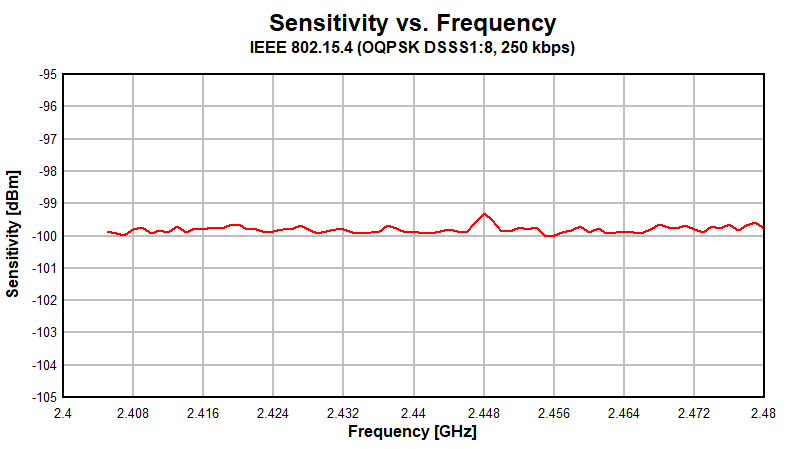

GUID-0B705F93-341C-4EA4-A38D-16BE7E44F038-low.gifFigure 7-15 Sensitivity vs. Frequency (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)

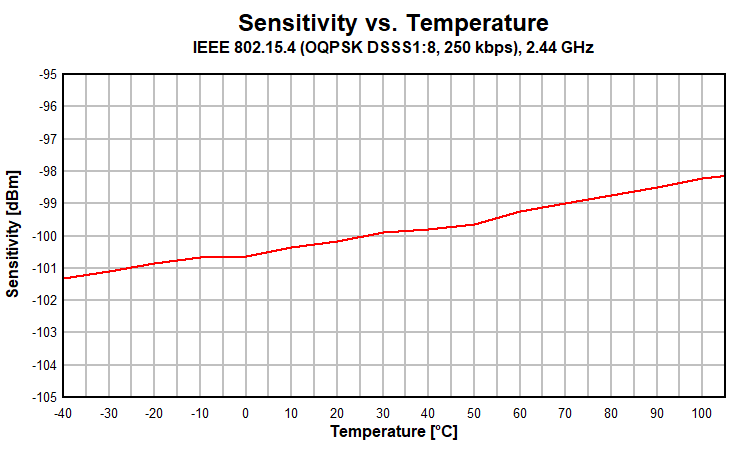

GUID-F0CD7E83-AECA-4B84-B223-E5117473648F-low.gifFigure 7-17 Sensitivity vs. Temperature (IEEE 802.15.4-2006, 250 kbps, OQPSK DSSS 1:8, 2.44GHz)
GUID-20231020-SS0I-ZFRW-R8RC-LWB1SSD2SJJD-low.svgFigure 7-19 Sensitivity vs. Supply Voltage (VDDS) (BLE 1Mbps, 2.44GHz, DCDC Off)
