7.16.5.6 ADC

Table 7-24 lists the ADC electrical specifications. See CC32xx ADC Appnote for further information on using the ADC and for application-specific examples.

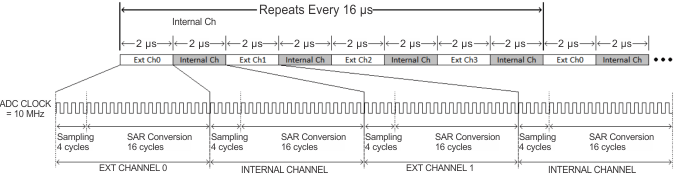

CC3235MODS CC3235MODSF CC3235MODAS CC3235MODASF ADC Clock Timing DiagramFigure 7-15 ADC Clock Timing Diagram



Figure 7-15 shows the ADC clock timing diagram.

Table 7-24 ADC Electrical Specifications
PARAMETERDESCRIPTIONTEST CONDITIONS / ASSUMPTIONSMINTYPMAXUNIT
NbitsNumber of bits12Bits
INLIntegral nonlinearityWorst-case deviation from histogram method over full scale (not including first and last three LSB levels)–2.52.5LSB
DNLDifferential nonlinearityWorst-case deviation of any step from ideal–14LSB
Input range01.4V
Driving source impedance100Ω
FCLKClock rateSuccessive approximation input clock rate10MHz
Input capacitance12pF
Input impedanceADC Pin 572.15kΩ
ADC Pin 580.7
ADC Pin 592.12
ADC Pin 601.17
Number of channels4
FsampleSampling rate of each pin62.5KSPS
F_input_maxMaximum input signal frequency31kHz
SINADSignal-to-noise and distortionInput frequency DC to 300 Hz and 1.4 Vpp sine wave input5560dB
I_activeActive supply currentAverage for analog-to-digital during conversion without reference current1.5mA
I_PDPower-down supply current for core supplyTotal for analog-to-digital when not active (this must be the SoC level test)1µA
Absolute offset errorFCLK = 10 MHz±2mV
Gain error±2%
VrefADC reference voltage1.467V
