4.2 Thermal Information

TA = 25°C (unless otherwise stated)
PARAMETERMINTYPMAXUNIT
R θJCJunction-to-case thermal resistance(1)1.1°C/W
R θJAJunction-to-ambient thermal resistance(1) (2)50°C/W

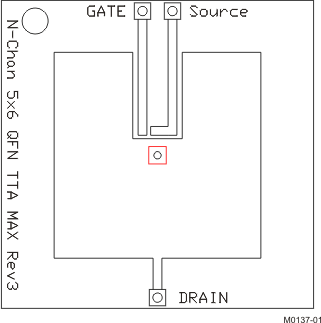

(1) RθJC is determined with the device mounted on a 1in2, 2oz Cu pad on a 1.5in × 1.5in, 0.06in thick FR4 board. RθJC is specified by design while RθJA is determined by the user’s board design.
(2) Device mounted on FR4 Material with 1 in2 of 2oz Cu.
Max RθJA = 50°C/W when mounted on 1in2 of 2oz Cu.
Max RθJA = 125°C/W when mounted on minimum pad area of 2oz Cu.
