Description

This 40V, 2.1mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.


Product Summary
TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 40 V
Qg Gate Charge Total (10V) 63.9 nC
Qgd Gate Charge Gate-to-Drain 9.7 nC
RDS(on) Drain-to-Source On-Resistance VGS = 4.5V 3.2 mΩ
VGS = 10V 2.1
VGS(th) Threshold Voltage 1.8 V
Device Information(1)
DEVICEMEDIAQTYPACKAGESHIP
CSD18511KCSTube50TO-220
Plastic Package
Tube
For all available packages, see the orderable addendum at the end of the data sheet.
Absolute Maximum Ratings
TA = 25°CVALUEUNIT
VDSDrain-to-Source Voltage40V
VGSGate-to-Source Voltage±20V
IDContinuous Drain Current (Package Limited)110A
Continuous Drain Current (Silicon Limited), TC = 25°C194
Continuous Drain Current (Silicon Limited), TC = 100°C137
IDMPulsed Drain Current(1)400A
PDPower Dissipation188W
TJ,
Tstg
Operating Junction,
Storage Temperature
–55 to 175°C
EASAvalanche Energy, Single Pulse
ID = 56A, L = 0.1mH, RG = 25Ω
156mJ
Max RθJC = 0.8°C/W, pulse duration ≤ 100μs, duty cycle ≤ 1%.

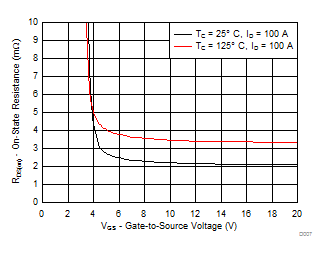

GUID-5E29AFF4-4673-42D7-9127-DA02565B5F0F-low.gif RDS(on) vs VGS
GUID-E35A9C39-5D4A-4F23-947D-725BFF2C4C29-low.gif Gate Charge
