5.2 Thermal Information

TA = 25°C (unless otherwise stated)
THERMAL METRICMINTYPMAXUNIT
RθJCJunction-to-case thermal resistance (1)1.5°C/W
RθJAJunction-to-ambient thermal resistance, Note 1 and Note 2(1)(2)55°C/W
(1) RθJC is determined with the device mounted on a 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu pad on a 1.5-in × 1.5-in (3.81-cm × 3.81-cm), 0.06-in (1.52-mm) thick FR4 PCB. RθJC is specified by design, whereas RθJA is determined by the user’s board design.
(2) Device mounted on FR4 material with 1-in2 (6.45-cm2), 2-oz (0.071-mm) thick Cu.

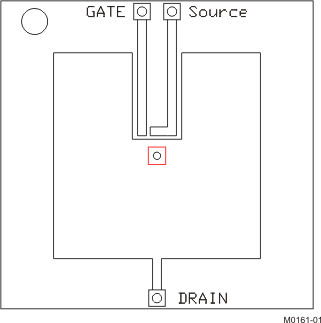

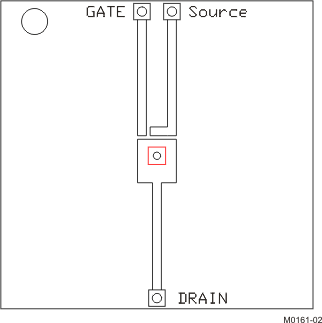

GUID-7D276610-944E-4ED2-A8EF-46AA3ECEAEEB-low.gif Max RθJA = 55°C/W when mounted on 1 in2 (6.45 cm2) of 2-oz (0.071-mm) thick Cu. GUID-E9F45FC2-7B1C-4A25-9688-912D79E109A5-low.gif Max RθJA = 160°C/W when mounted on a minimum pad area of 2-oz (0.071-mm) thick Cu.
