4.3 Typical MOSFET Characteristics

(TA = 25°C unless otherwise stated)

CSD85301Q2 Transient Thermal Impedance
Figure 4-1 Transient Thermal Impedance
CSD85301Q2 Saturation Characteristics
Figure 4-2 Saturation Characteristics
CSD85301Q2 Gate Charge
ID = 5AVDS = 10V
Figure 4-4 Gate Charge

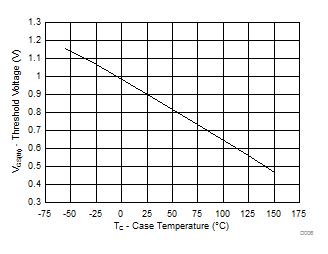

CSD85301Q2 Threshold Voltage vs Temperature
ID = 5A
Figure 4-6 Threshold Voltage vs Temperature

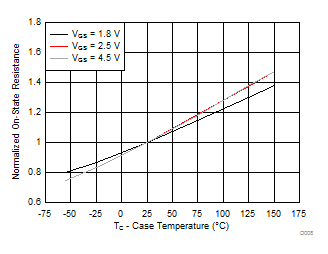

CSD85301Q2 Normalized On-State Resistance vs Temperature
ID = 5A
Figure 4-8 Normalized On-State Resistance vs Temperature

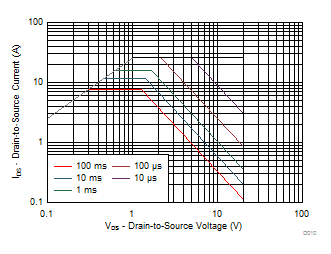

CSD85301Q2 Maximum Safe Operating Area
Single Pulse, Max RθJA = 185°C/W
Figure 4-10 Maximum Safe Operating Area
CSD85301Q2 Maximum Drain Current vs Temperature
Figure 4-12 Maximum Drain Current vs Temperature
CSD85301Q2 Transfer Characteristics
VDS = 5V
Figure 4-3 Transfer Characteristics

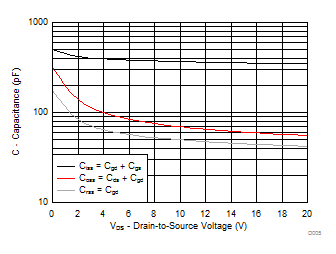

CSD85301Q2 Capacitance
Figure 4-5 Capacitance

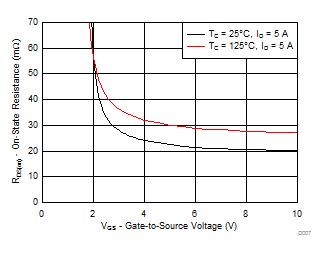

CSD85301Q2 On-State Resistance vs Gate-to-Source Voltage
Figure 4-7 On-State Resistance vs Gate-to-Source Voltage
CSD85301Q2 Typical Diode Forward Voltage
Figure 4-9 Typical Diode Forward Voltage

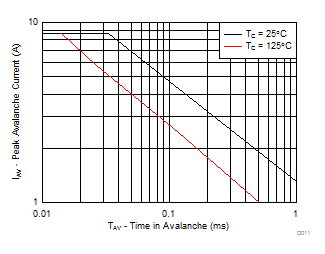

CSD85301Q2 Single Pulse Unclamped Inductive Switching
Figure 4-11 Single Pulse Unclamped Inductive Switching
