3 Description

This dual SO-8, 60 V, 23 mΩ NexFET™ power MOSFET is designed to serve as a half bridge in low-current motor control applications.

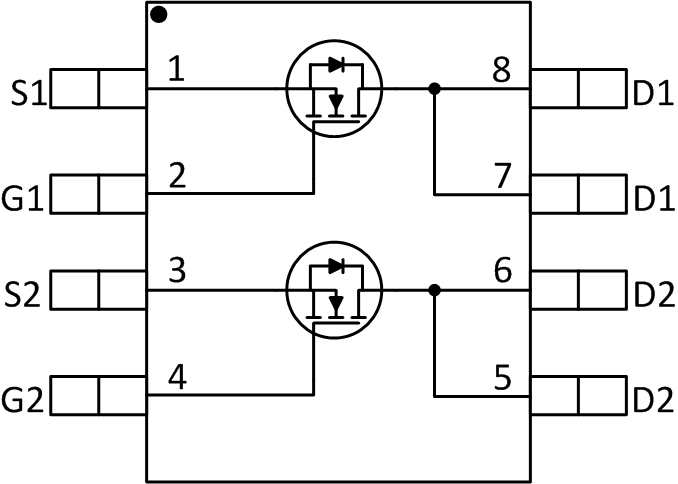

GUID-B632D4AF-F4E1-46E9-AD82-E59BA1AFC80A-low.gif Figure 3-1 Top View
Product Summary
TA = 25°C TYPICAL VALUE UNIT
VDS Drain-to-Source Voltage 60 V
Qg Gate Charge Total (10 V) 7.2 nC
Qgd Gate Charge Gate to Drain 1.1 nC
RDS(on) Drain-to-Source On Resistance VGS = 6 V 27 mΩ
VGS = 10 V 23 mΩ
VGS(th) Threshold Voltage 3.0 V
Ordering Information(1)
Device Qty Media Package Ship
CSD88539ND 2500 13-Inch Reel SO-8 Plastic Package Tape and Reel
CSD88539NDT 250 7-Inch Reel
(1) For all available packages, see the orderable addendum at the end of the data sheet.
Absolute Maximum Ratings
TA = 25°C VALUE UNIT
VDS Drain-to-Source Voltage 60 V
VGS Gate-to-Source Voltage ±20 V
ID Continuous Drain Current (Package limited) 15 A
Continuous Drain Current (Silicon limited), TC = 25°C 11.7
Continuous Drain Current(1) 6.3
IDM Pulsed Drain Current (2) 46 A
PD Power Dissipation(1) 2.1 W
TJ, TSTG Operating Junction and Storage Temperature Range –55 to 150 °C
EAS Avalanche Energy, single pulse
ID = 22 A, L = 0.1 mH, RG = 25 Ω		 24 mJ
(1) Typical RθJA = 60°C/W on a 1-inch2, 2-oz. Cu pad on a 0.06-inch thick FR4 PCB
(2) Pulse duration ≤300 μs, duty cycle ≤2%
GUID-AE88F349-CB98-4C7D-A387-60445CF270F5-low.pngRDS(on) vs VGS
GUID-DC213175-1BBB-4971-BD40-D892DBCAF37B-low.pngGate Charge
