6.7 Typical Characteristics

TA = 25°C, unless otherwise noted.

DCP020505PILOAD = 400 mA
Figure 6-1 Conducted Emissions versus Frequency
DCP020505P(20 MHz Bandwidth)
Figure 6-3 Output AC Ripple versus Load Current
DCP020505P

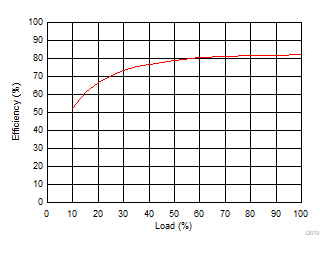

Figure 6-5 Efficiency versus Load
DCP020503P

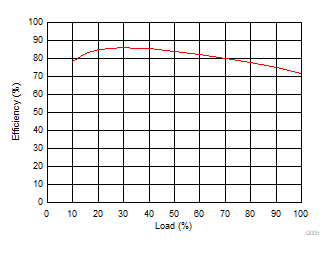

Figure 6-7 Efficiency versus Load
DCP020507P
Figure 6-9 Efficiency versus Load
DCP020509P
Figure 6-11 Efficiency versus Load
DCP020515DP
Figure 6-13 Efficiency versus Load
DCP021205P
Figure 6-15 Efficiency versus Load
DCP021212P
Figure 6-17 Efficiency versus Load
DCP021212DP
Figure 6-19 Efficiency versus Load
DCP021515P
Figure 6-21 Efficiency versus Load
DCP022405P
Figure 6-23 Efficiency versus Load
DCP022405DP
Figure 6-25 Efficiency versus Load
DCP022415DP
Figure 6-27 Efficiency versus Load
100% Load

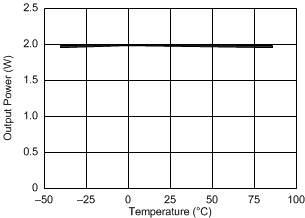

Figure 6-2 Output Power versus Temperature
DCP020505P75% Load Current
Figure 6-4 Output Voltage versus Temperature
DCP020505P Note: Operations under 10% Load

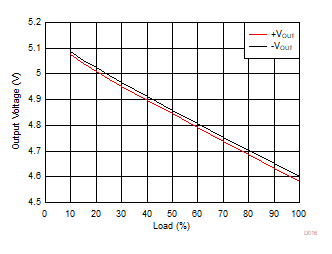

Figure 6-6 Load Regulation
DCP020503PNote: Operations under 10% Load

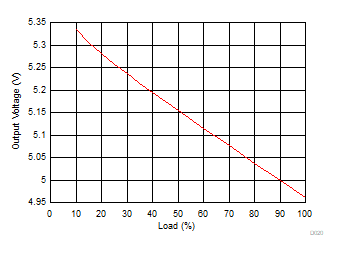

Figure 6-8 Load Regulation
DCP020507PNote: Operations under 10% Load

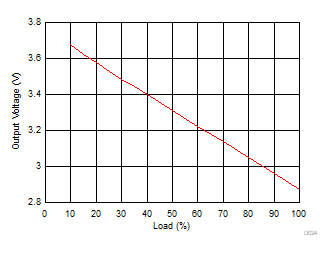

Figure 6-10 Load Regulation
DCP020509PNote: Operations under 10% Load

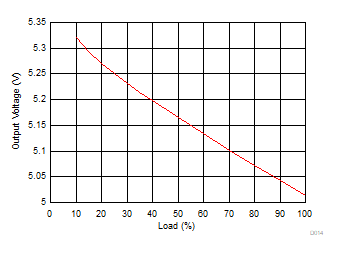

Figure 6-12 Load Regulation
DCP020515PNote: Operations under 10% Load

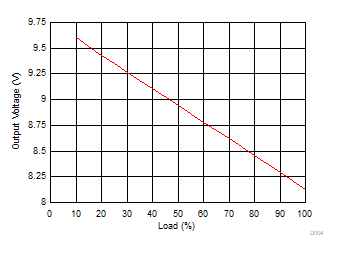

Figure 6-14 Load Regulation
DCP021205PNote: Operations under 10% Load
Figure 6-16 Load Regulation
DCP021212PNote: Operations under 10% Load
Figure 6-18 Load Regulation
DCP021212DPNote: Operations under 10% Load
Figure 6-20 Load Regulation
DCP021515PNote: Operations under 10% Load
Figure 6-22 Load Regulation
DCP022405PNote: Operations under 10% Load
Figure 6-24 Load Regulation
DCP022405DPNote: Operations under 10% Load
Figure 6-26 Load Regulation
DCP022415DPNote: Operations under 10% Load
Figure 6-28 Load Regulation
