6.6 Typical Characteristics

TA = 25°C, VS = 12 V, VIN+ = 12 V, and VSENSE = 100 mV (unless otherwise noted)

GUID-7DE21321-000E-4A28-A92A-76B122BFD67D-low.gifFigure 6-1 Gain vs Frequency
GUID-FAC177C8-4936-4D17-8CAA-258E7C24A10F-low.gifFigure 6-3 Gain Plot
GUID-B1D11DF2-4EB3-4819-8AF1-EEEA0FD67596-low.gifFigure 6-5 Output Error vs Vsense

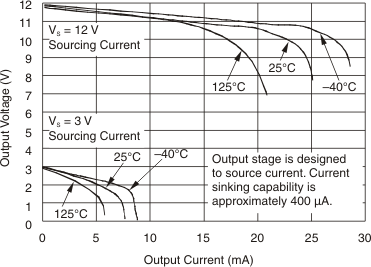

GUID-EB32B1AB-8281-468F-8F51-674EBBF46BCF-low.gifFigure 6-7 Positive Output Voltage Swing vs Output Current
Vs=5 V

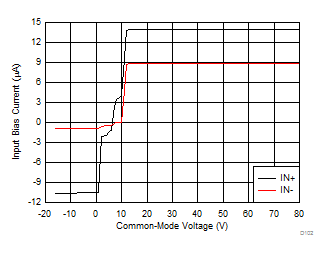

Figure 6-9 Input Bias Current vs Common Mode Voltage

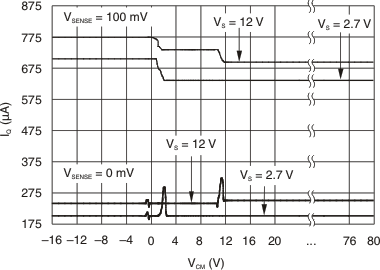

GUID-4A50AC02-030C-4068-B88A-F1698E11AE2D-low.gifFigure 6-11 Quiescent Current vs Common Mode Voltage

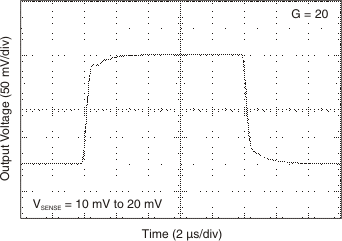

GUID-644A0B9A-25AC-4332-871E-54C963C4ADE4-low.gifFigure 6-13 Step Response

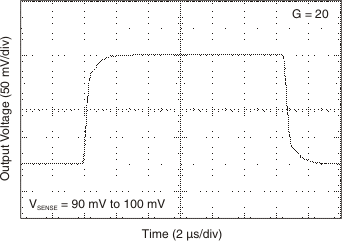

GUID-C8E3BD48-7D35-4751-A625-A7070EBF384D-low.gifFigure 6-15 Step Response

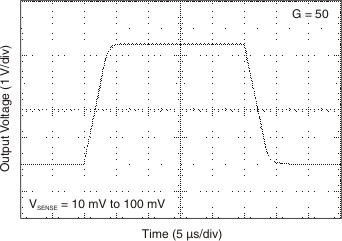

GUID-BE1B7926-F209-43EC-98EB-673BAF08DE08-low.gifFigure 6-17 Step Response

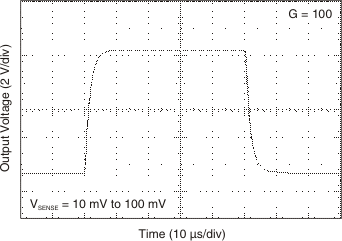

GUID-A0781514-CB3C-4FE2-A244-A1CCD2FF3DF1-low.gifFigure 6-19 Step Response
GUID-51033C2B-F178-47BD-A6C5-36B7D27A2304-low.gifFigure 6-2 Gain vs Frequency
GUID-BC0B7027-8671-4AE8-9CEE-BF0C417B6050-low.gifFigure 6-4 Common-Mode and Power-Supply Rejection vs Frequency
GUID-3E2E4F6D-A0A6-405F-9BAF-A2A0E3E70F2A-low.gifFigure 6-6 Output Error vs Common-Mode Voltage

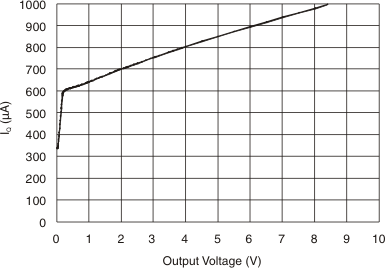

GUID-CA5609FB-5A89-49CF-81BA-12573D5E7095-low.gifFigure 6-8 Quiescent Current vs Output Voltage
Vs =12 V
Figure 6-10 Input Bias Current vs Common Mode Voltage
GUID-C2D7F657-CC7C-448F-A475-CA9749532A1A-low.gifFigure 6-12 Output Short Circuit Current vs Supply Voltage

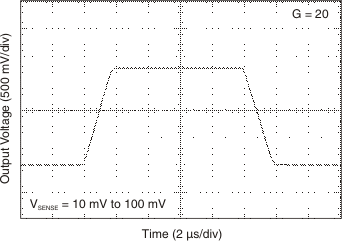

GUID-A63AD484-12DF-4178-8283-43AA23F7CE44-low.gifFigure 6-14 Step Response

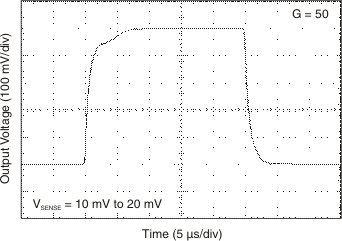

GUID-802922B4-77AD-4CEB-AFCC-25DACE599D06-low.gifFigure 6-16 Step Response

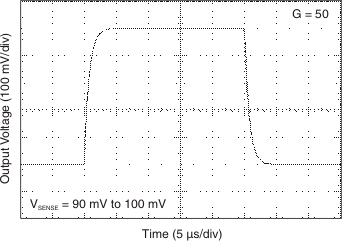

GUID-F158969A-89D9-428B-B65C-8F54C30A50B3-low.gifFigure 6-18 Step Response
