5.6 Typical Characteristics

at TA = 25°C, VS = 5 V, VIN+ = 12 V, and VREF = VS / 2, (unless otherwise noted)

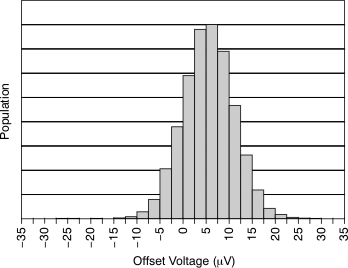

Figure 5-1 Input Offset Voltage Production Distribution
Figure 5-3 Common-Mode Rejection Production Distribution
Figure 5-5 Gain Error Production Distribution
VCM = 0 VVDIF = 15-mVPP sine

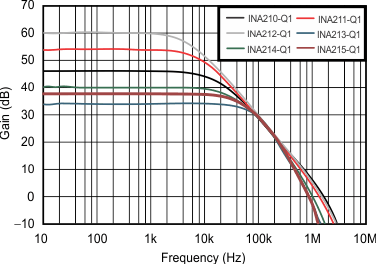

Figure 5-7 Gain vs Frequency
VS = 5 VVCM = 1 V sineVDIF = shorted
VREF = 2.5 V
Figure 5-9 Common-Mode Rejection Ratio vs Frequency
Figure 5-11 Input Bias Current vs Common-Mode Voltage With Supply Voltage = 5 V
Figure 5-13 Input Bias Current vs Temperature
VS = ±2.5 VVREF = 0 VVIN–, VIN+ = 0 V
Figure 5-15 Input-Referred Voltage Noise vs Frequency

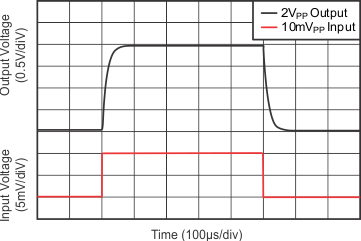

Figure 5-17 Step Response (10-mVPP Input Step)
VS = 5 VVREF = 2.5 VVCM = 12 V

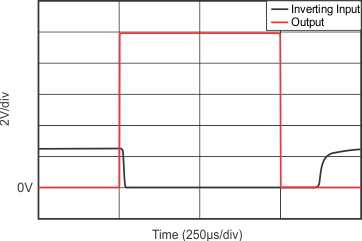

Figure 5-19 Inverting Differential Input Overload
VS = 5 VVREF = 2.5 V1-kHz step with VDIF = 0 V

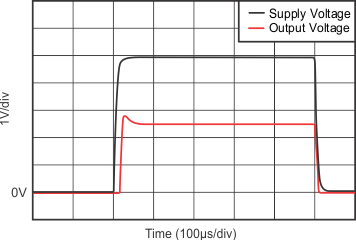

Figure 5-21 Start-Up Response

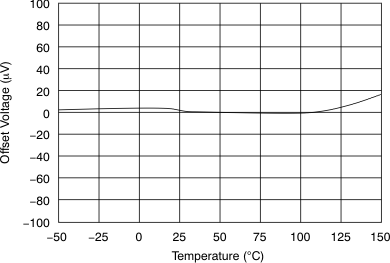

Figure 5-2 Offset Voltage vs Temperature

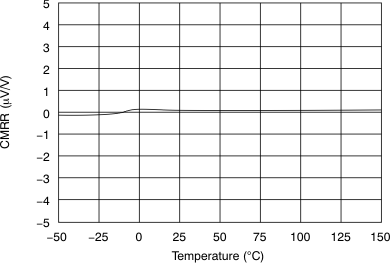

Figure 5-4 Common-Mode Rejection Ratio vs Temperature
20 typical units shown
Figure 5-6 Gain Error vs Temperature
VS = 5 V + 250-mV sine disturbance
VCM = 0 VVREF = 2.5 VVDIF = shorted

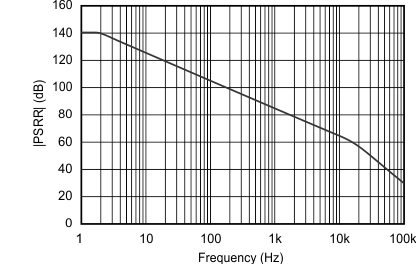

Figure 5-8 Power-Supply Rejection Ratio vs Frequency
Figure 5-10 Output Voltage Swing vs Output Current
Figure 5-12 Input Bias Current vs Common-Mode Voltage With Supply Voltage = 0 V (Shutdown)

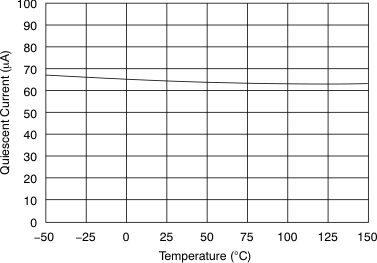

Figure 5-14 Quiescent Current vs Temperature
VS = ±2.5 VVREF = 0 VVCM = 0 V
VDIF = 0 V

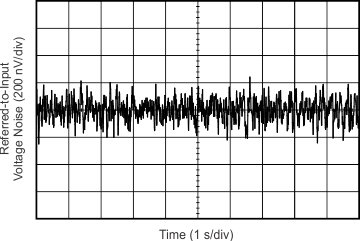

Figure 5-16 0.1-Hz To 10-Hz Voltage Noise (Referred-To-Input)

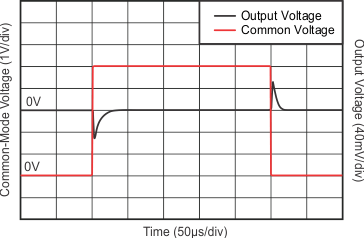

Figure 5-18 Common-Mode Voltage Transient Response
VS = 5 VVREF = 2.5 VVCM = 12 V

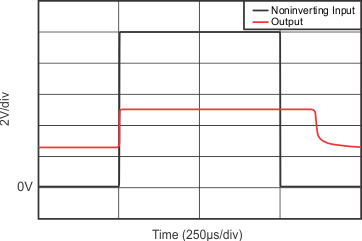

Figure 5-20 Noninverting Differential Input Overload
VS = 5 VVREF = 2.5 V1-kHz step with VDIF = 0 V

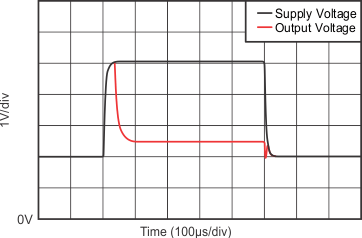

Figure 5-22 Brownout Recovery
