Parameter Measurement Information

GUID-F4853EAD-D6B0-4DCF-9CE1-60A4A899E295-low.gifFigure 7-1 Driver VOD Test and Current Definitions

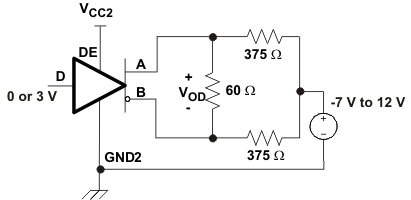

GUID-F6937E05-763A-40BA-997F-F2FC8A8581C2-low.gifFigure 7-2 Driver VOD With Common-Mode Loading Test Circuit

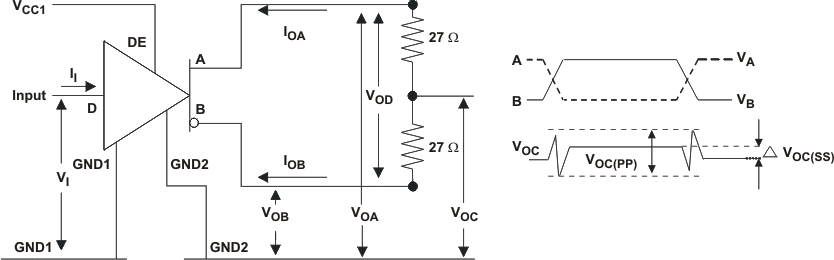

GUID-765B8648-4F22-429B-909E-56B9096B0B50-low.gif Figure 7-3 Test Circuit and Waveform Definitions for the Driver Common-Mode Output Voltage
GUID-768FA3F4-AADB-45CB-ABC5-0B1C27F5B214-low.gif Figure 7-4 Driver Switching Test Circuit and Voltage Waveforms
Note:

Driver output pins are A and B for the ISO15 (see Figure 7-1 through Figure 7-4). These correspond to ISO35 pins Y and Z

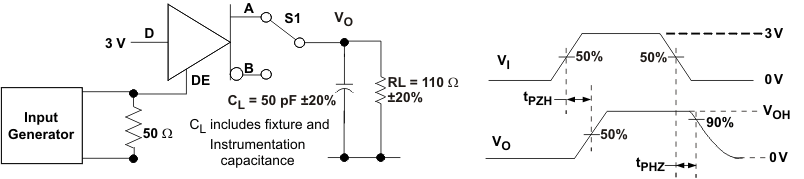

GUID-9E2BE0F9-5C5B-48C8-AE34-110FB1260BDB-low.gif Figure 7-5 Driver High-Level Output Enable and Disable Time Test Circuit and Voltage Waveforms
GUID-D79D5A94-3838-4ADA-A6E5-F247ED4E0D88-low.gif Figure 7-6 Driver Low-Level Output Enable and Disable Time Test Circuit and Voltage Waveform
Note:

Driver output pins are A and B for the ISO15 (see Figure 7-5 through Figure 7-6). These correspond to ISO35 pins Y and Z

GUID-74F2E732-16E7-4597-B43D-17D91594332B-low.gif Figure 7-7 Receiver Voltage and Current Definitions
GUID-EFF8A475-CB02-4445-93AE-93153A93738F-low.gif Figure 7-8 Receiver Switching Test Circuit and Waveforms

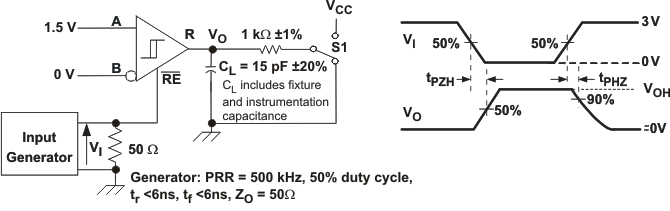

GUID-87CC233E-912B-43C2-B55A-46BB8A41B46F-low.gif Figure 7-9 Receiver Enable Test Circuit and Waveforms, Data Output High
GUID-9E3E8BF6-65CD-4FB5-92D6-F0305554C68A-low.gif Figure 7-10 Receiver Enable Test Circuit and Waveforms, Data Output Low
GUID-BD975D4C-CEEC-4B72-9C70-FCA2747A84CF-low.gif Figure 7-11 Transient Overvoltage Test Circuit
GUID-484A4284-DF15-4BF2-90BC-264AC9361A02-low.gif Figure 7-12 Half-Duplex Common-Mode Transient Immunity Test Circuit
GUID-CA363E31-E8CD-4B04-9877-406646648E5D-low.gif Figure 7-13 Full-Duplex Common-Mode Transient Immunity Test Circuit
