10.2.1.3 Application Curves

Channels loaded equally
Figure 10-5 Efficiency Versus IOUT
3.3-V output, channel 2 disabled
Figure 10-7 Efficiency Versus IOUT, Log Scale
5-V output, channel 1 disabled
Figure 10-9 Efficiency Versus IOUT, Log Scale
VIN step to 12 V7-A resistive loads
Figure 10-11 Start-Up Characteristic
VIN = 12 VFPWM
Figure 10-13 Load Transient, 3.3-V Output, 0 A to 7 A
VIN = 12 VFPWM

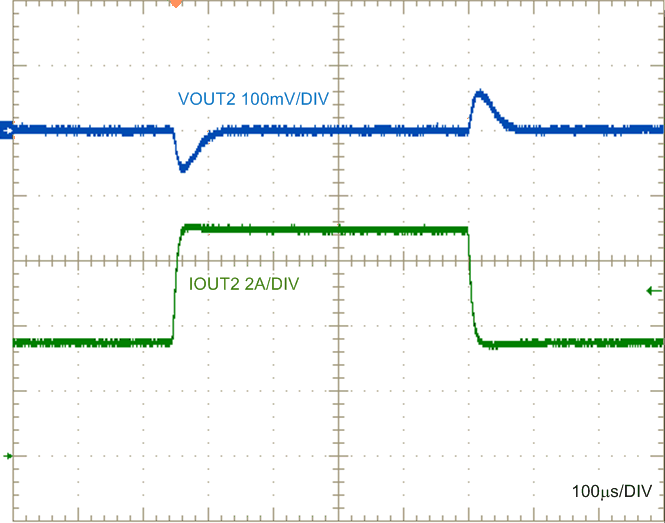

Figure 10-15 Load Transient, 5-V Output, 0 A to 7 A
VIN = 12 V7-A resistive load
Figure 10-17 Bode Plot, 3.3-V Output
VIN = 13.5 VVOUT = 5 V7-A resistive load
Figure 10-19 CISPR 25 Class 5 Conducted EMI, 150 kHz to 30 MHz
3.3-V output, channel 2 disabled
Figure 10-6 Efficiency Versus IOUT
5-V output, channel 1 disabled
Figure 10-8 Efficiency Versus IOUT
1-A loads
Figure 10-10 Cold-Crank Response to VIN = 3.8 V
VIN = 12 V7-A resistive loads
Figure 10-12 ENABLE ON and OFF Characteristic
VIN = 12 VFPWM
Figure 10-14 Load Transient, 3.3-V Output, 3.5 A to 7 A
VIN = 12 VFPWM
Figure 10-16 Load Transient, 5-V Output, 3.5 A to 7 A
VIN = 12 V7-A resistive load

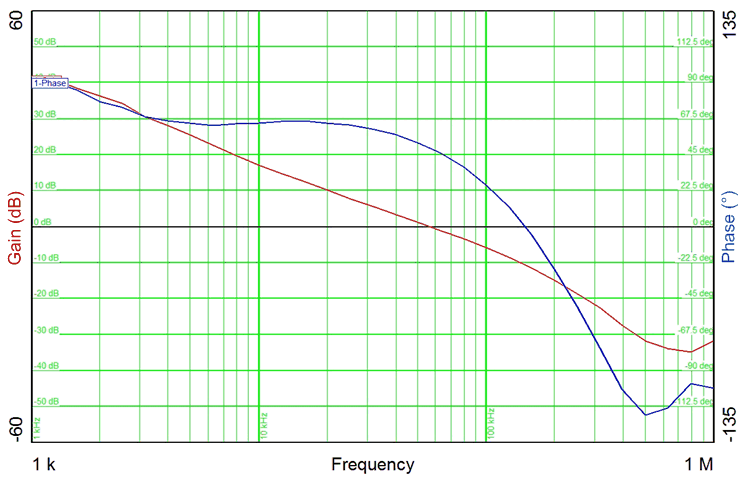

Figure 10-18 Bode Plot, 5-V Output
VIN = 13.5 VVOUT = 5 V7-A resistive load

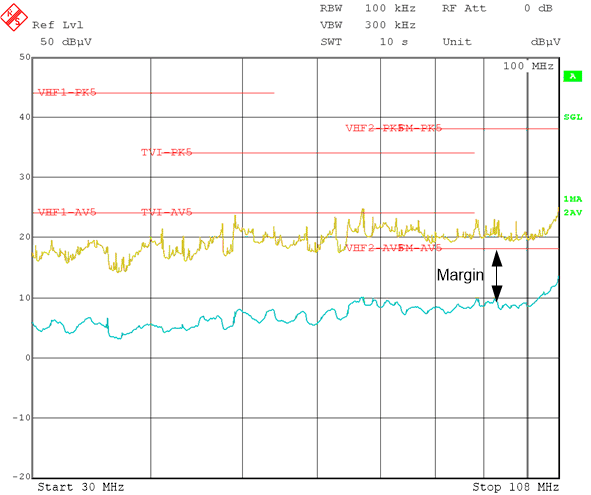

Figure 10-20 CISPR 25 Class 5 Conducted EMI, 30 MHz to 108 MHz
