8.7 Typical Characteristics

VIN = VEN1 = VEN2 = 12 V, TJ = 25°C, unless otherwise stated

See Figure 10-4.VOUT = 5 VFSW = 2.1 MHz

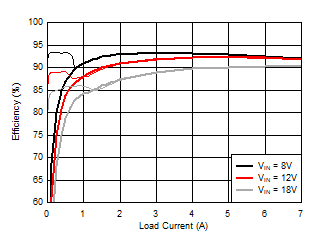

Figure 8-1 Efficiency Versus Load

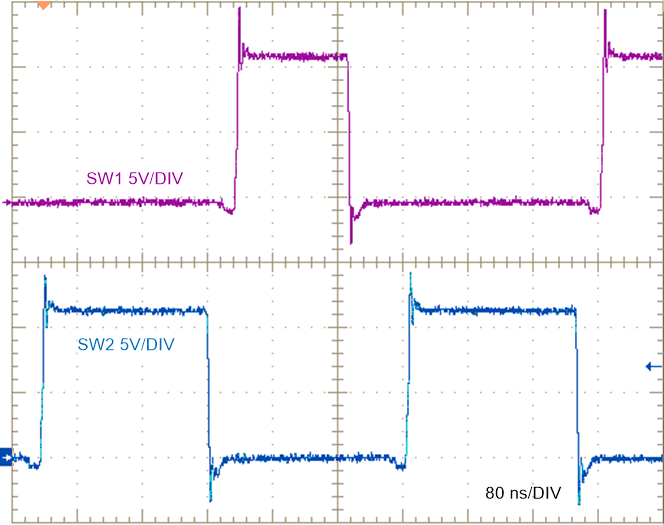

GUID-BCEB7450-98E6-4F7E-83EA-FEE35C2ECEDA-low.gifFigure 8-3 Switch Node Voltages
GUID-2E43799C-E0E1-4A7D-8B67-4EFCC0F393DF-low.gifFigure 8-5 Load Transient Response
VEN1 = VEN2 = 0 V
Figure 8-7 Shutdown Current Versus Input Voltage
GUID-5E4E1453-2C84-48B6-A51E-B7189CD0DF7A-low.gifFigure 8-9 ULIQ Mode Standby Current Versus Temperature
GUID-C5AD6EA5-3076-496A-BB80-B0440FEB10C0-low.gifFigure 8-11 Fixed 5-V Output Voltage (VOUT1) Versus Temperature

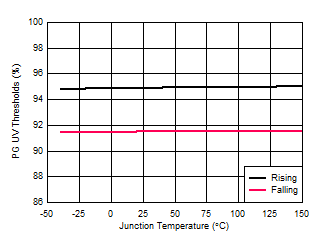

GUID-F0B8F1B4-21E5-4AD7-96EE-C04C6E7636F0-low.gifFigure 8-13 PG UV Thresholds Versus Temperature
GUID-DB55DC8F-53F1-4507-8842-F79DCAC47F77-low.gifFigure 8-15 VCC Regulation Voltage Versus Temperature

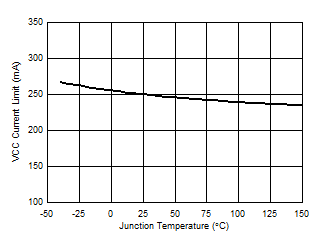

GUID-3549A06A-833F-4075-A0F0-F7C8E80BAC7B-low.gifFigure 8-17 VCC Current Limit Versus Temperature

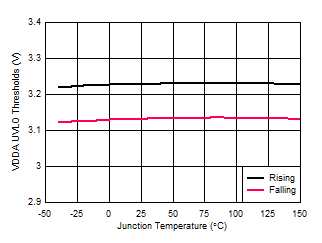

GUID-3283A7EF-850E-4281-8235-470C3C0662DD-low.gifFigure 8-19 VDDA UVLO Thresholds Versus Temperature

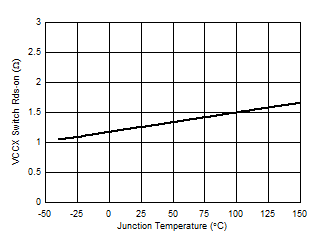

GUID-065589B9-1C76-4B18-ACAA-79BD65D7D3C6-low.gifFigure 8-21 VCCX Switch Resistance Versus Temperature
GUID-2D8021A2-3B85-4CC4-9F3D-B56C04037871-low.gifFigure 8-23 Current Sense (CS1) Amplifier Gain Versus Temperature

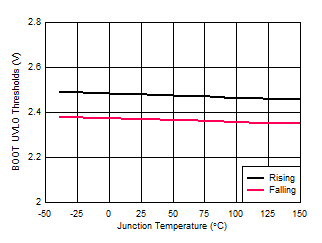

GUID-3C445573-B48D-4DCD-B8B0-59BDB455E268-low.gifFigure 8-25 BOOT (HB1) UVLO Thresholds Versus Temperature

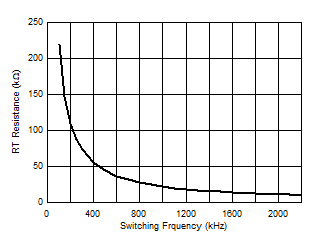

GUID-7AB7F717-CD22-415D-92CA-47EB94707116-low.gifFigure 8-27 RT Resistance Versus Switching Frequency
See Figure 10-4.VOUT = 3.3 VFSW = 2.1 MHz
Figure 8-2 Efficiency Versus Load

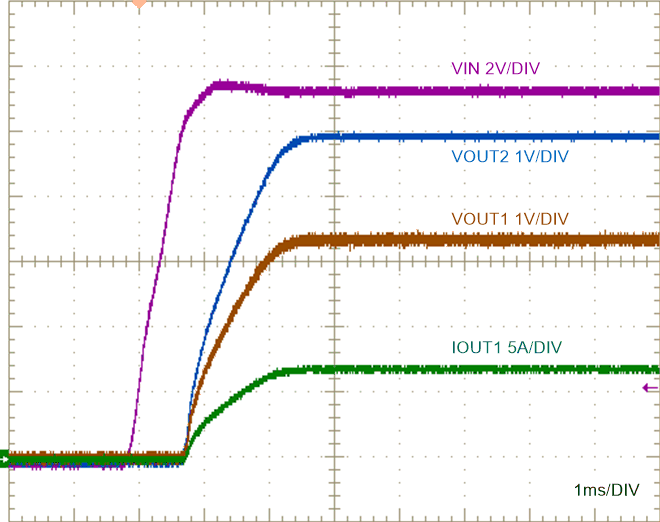

GUID-0608BA9C-E4C7-4928-BE26-C2968DE8C29E-low.gifFigure 8-4 Start-Up Characteristic
VEN1 = VEN2 = 0 V

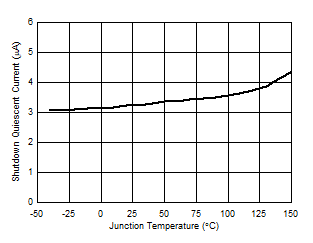

Figure 8-6 Shutdown Current Versus Temperature
VEN2 = 0 V
Figure 8-8 Channel 1 Standby Current Versus Temperature
GUID-EE511190-C2C0-420C-BC07-8756AAFED7E4-low.gifFigure 8-10 Fixed 3.3-V Output Voltage (VOUT1) Versus Temperature

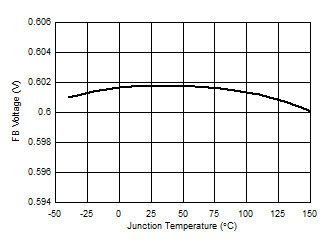

GUID-3B4650F5-AC1F-4096-ACB1-82716FE681E1-low.gifFigure 8-12 Feedback Voltage Versus Temperature
GUID-92968645-9E8A-4CAD-9585-D866B577C24B-low.gifFigure 8-14 PG OV Thresholds Versus Temperature

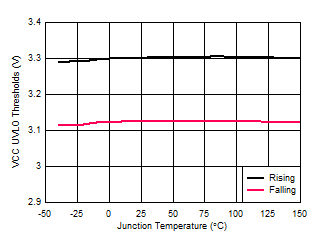

GUID-E62B2B6B-1B1C-47B5-92F2-67CE55B871A4-low.gifFigure 8-16 VCC UVLO Thresholds Versus Temperature
GUID-C551048B-3EDB-423C-88CB-679104EC5ECA-low.gifFigure 8-18 VDDA Regulation Voltage Versus Temperature

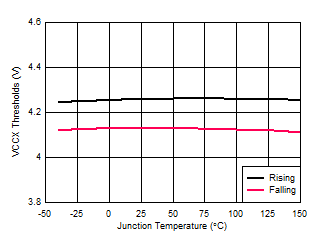

GUID-BC3404D9-4B75-428F-BC4B-97F17FBDD1AC-low.gifFigure 8-20 VCCX On/Off Thresholds Versus Temperature
GUID-C4045119-29BB-4DB4-B45B-5F72EFEA2D87-low.gifFigure 8-22 Current Sense (CS1) Threshold Versus Temperature
GUID-EDC255F8-5C65-44DD-A9C9-5496F77D5692-low.gifFigure 8-24 Minimum On Time and Off Time (HO1) Versus Temperature

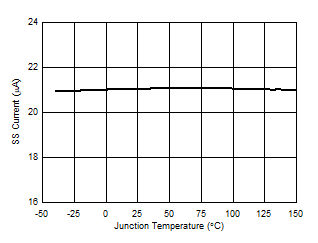

GUID-0015002F-D0E9-4BB3-BD84-DA6E0032BE3B-low.gifFigure 8-26 Soft-Start (SS1) Current Versus Temperature
