6.12 Typical Characteristics: All Devices Except B and BA Versions

LM124 LM124A LM224 LM224A LM224K LM224KA LM324 LM324A LM324B LM324BA LM324K LM324KA LM2902 LM2902B LM2902BA LM2902K LM2902KAV LM2902KV Output Sinking Characteristics

Figure 6-35 Output Sinking Characteristics
LM124 LM124A LM224 LM224A LM224K LM224KA LM324 LM324A LM324B LM324BA LM324K LM324KA LM2902 LM2902B LM2902BA LM2902K LM2902KAV LM2902KV Source Current Limiting

Figure 6-37 Source Current Limiting
LM124 LM124A LM224 LM224A LM224K LM224KA LM324 LM324A LM324B LM324BA LM324K LM324KA LM2902 LM2902B LM2902BA LM2902K LM2902KAV LM2902KV Common-Mode Rejection Ratio

Figure 6-39 Common-Mode Rejection Ratio

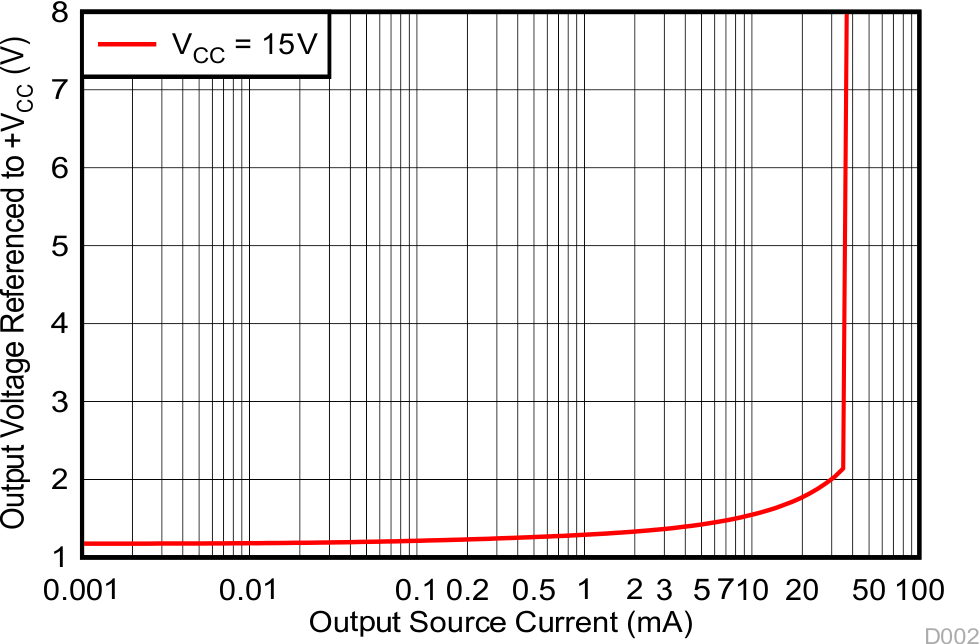

LM124 LM124A LM224 LM224A LM224K LM224KA LM324 LM324A LM324B LM324BA LM324K LM324KA LM2902 LM2902B LM2902BA LM2902K LM2902KAV LM2902KV Output Sourcing Characteristics

Figure 6-36 Output Sourcing Characteristics

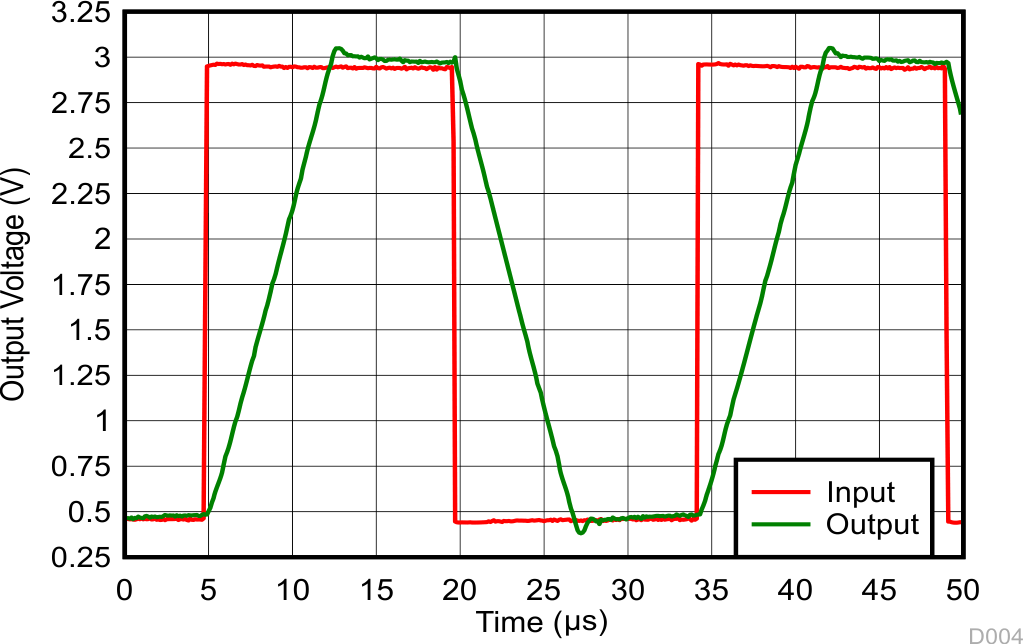

LM124 LM124A LM224 LM224A LM224K LM224KA LM324 LM324A LM324B LM324BA LM324K LM324KA LM2902 LM2902B LM2902BA LM2902K LM2902KAV LM2902KV Voltage Follower Large-Signal Response (50pF)

Figure 6-38 Voltage Follower Large-Signal Response (50pF)
LM124 LM124A LM224 LM224A LM224K LM224KA LM324 LM324A LM324B LM324BA LM324K LM324KA LM2902 LM2902B LM2902BA LM2902K LM2902KAV LM2902KV Maximum Output Swing vs Frequency
VCC = 15V
Figure 6-40 Maximum Output Swing vs Frequency
