6.7 Typical Characteristics

VCE > VIN
Figure 6-1 Shutdown Current vs Input Voltage
VCE > VIN

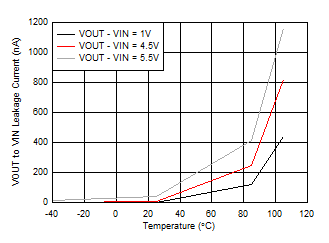

Figure 6-3 Reverse Leakage Current vs Junction Temperature
GUID-A36E9482-7520-42B3-A75E-16A83AE0C57E-low.gifFigure 6-5 Turn ON Threshold vs Input Voltage
VCE > VIN IOUT = 10 mA

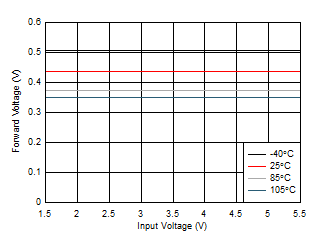

Figure 6-7 Body Diode Forward Voltage vs Input Voltage
CL = 100nF RL = 1 kΩ VIN = 1.8 V to 5 V
Figure 6-9 Turn OFF Time vs Junction Temperature
VCE < VIN
Figure 6-2 Quiescent Current vs Input Voltage
VCE < VIN IOUT = 200 mA

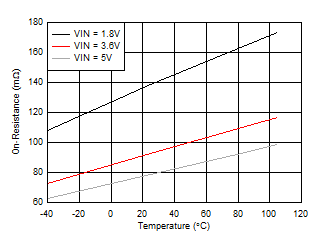

Figure 6-4 On-Resistance vs Junction Temperature
GUID-54AD4747-CC63-47C1-920D-A7E40154676F-low.gifFigure 6-6 Turn OFF Threshold vs Input Voltage
CL = 100 nF RL = 1 kΩ
Figure 6-8 Turn ON Time vs Junction Temperature
CL = 100 nF RL = 1 kΩ
Figure 6-10 Fall Time vs Junction Temperature
