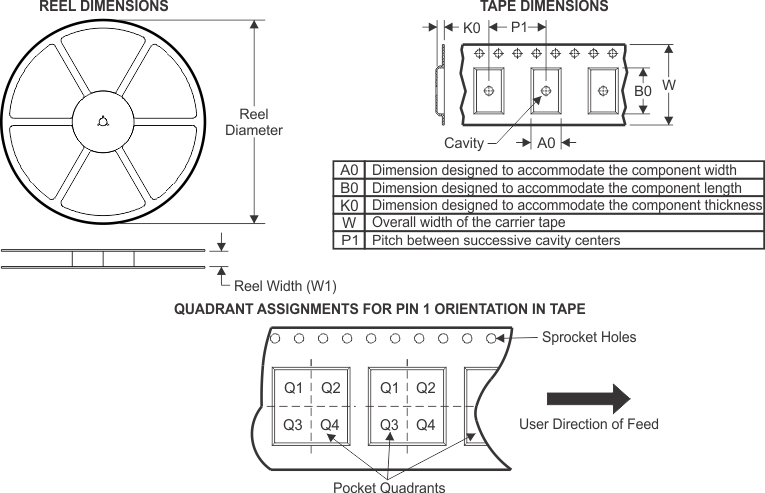

13.1 Tape and Reel Information

LMR33610
Device Package
Type		 Package Drawing Pins SPQ Reel
Diameter (mm)		 Reel
Width W1 (mm)		 A0
(mm)		 B0
(mm)		 K0
(mm)		 P1
(mm)		 W
(mm)		 Pin1
Quadrant
LMR33610ADDAR SO PowerPAD DDA 8 2500 330 12.4 6.4 5.2 2.1 8 12 Q1
LMR33610BDDAR SO PowerPAD DDA 8 2500 330 12.4 6.4 5.2 2.1 8 12 Q1
LMR33610
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
LMR33610ADDAR SO PowerPAD DDA 8 2500 353 353 36
LMR33610BDDAR SO PowerPAD DDA 8 2500 353 353 36
