Layout

Layout Guidelines

  • The V+ pin must be bypassed to ground with a low-ESR capacitor.
  • The optimum placement is closest to the V+ and ground pins.
  • Take care to minimize the loop area formed by the bypass capacitor connection between V+ and ground.
  • The ground pin must be connected to the PCB ground plane at the pin of the device.
  • The feedback components must be placed as close to the device as possible to minimize strays.

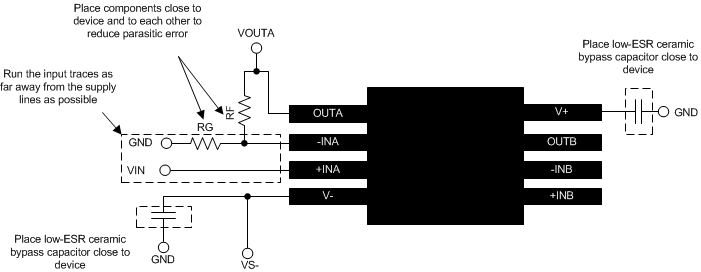

Layout Example

LMV841 LMV842 LMV844 layout_example_slv522_snosd22.gif Figure 43. Layout Example (Top View)
