5 Pin Configuration and Functions

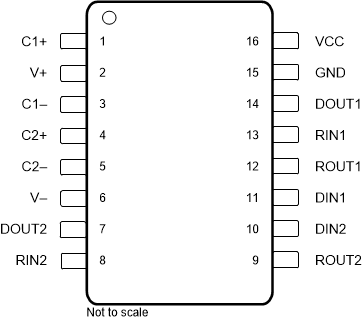

GUID-35D829E1-E21C-42CD-B2B0-0FF2A999C799-low.gifFigure 5-1 D, DB, DW, or PW Package, 16-Pin SOIC, SSOP, or TSSOP, Top View
Table 5-1 Pin Functions
PIN TYPE DESCRIPTION
NAME NO.
C1+ 1 — Positive lead of C1 capacitor
V+ 2 O Positive charge pump output for storage capacitor only
C1– 3 — Negative lead of C1 capacitor
C2+ 4 — Positive lead of C2 capacitor
C2– 5 — Negative lead of C2 capacitor
V– 6 O Negative charge pump output for storage capacitor only
DOUT2 7 O RS232 line data output (to remote RS232 system)
DOUT1 14 O RS232 line data output (to remote RS232 system)
RIN2 8 I RS232 line data input (from remote RS232 system)
RIN1 13 I RS232 line data input (from remote RS232 system)
ROUT2 9 O Logic data output (to UART)
ROUT1 12 O Logic data output (to UART)
DIN2 10 I Logic data input (from UART)
DIN1 11 I Logic data input (from UART)
GND 15 — Ground
VCC 16 — Supply Voltage, Connect to external 3 V to 5.5 V power supply
