6.6 Typical Characteristics

at TA = 25°C, VS = ±15 V, and RL = 2 kΩ (unless otherwise noted)
OPA207 C002_DC.png
Figure 1. Input Referred Offset Voltage Distribution
OPA207 OpenLoopGain_Phase.gif
Figure 3. Open-Loop Gain and Phase vs Frequency
OPA207 PSRR_CMRR.gif
Figure 5. Power Supply Rejection Ratio and Common-Mode Rejection Ratio vs Frequency
OPA207 FPBW.gif
Figure 7. Full Power Bandwidth
OPA207 Noise_10Sec_p1_10Hz.gif
Figure 9. 0.1-Hz to 10-Hz Noise Voltage
OPA207 OPA207_THDNvAmp_1kHz.gif
Figure 11. Total Harmonic Distortion + Noise vs Output Amplitude
OPA207 OPA207_OSvCload_Gp1.gif
G = +1 V/V
Figure 13. Overshoot vs Capacitive Load

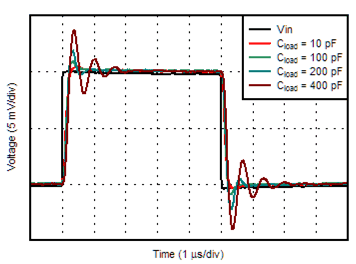

OPA207 SmallSignal_G1_Cload.gif
G = +1 V/V
Figure 15. Small-Signal Step Response
OPA207 SmallSignal_G-1_Cload.gif
G = –1 V/V
Figure 17. Small-Signal Step Response
OPA207 PosOverloadRecovery.gif
Figure 19. Overload Recovery From Positive Overload
OPA207 SettlingTime.gif
VOUT = 3 VRMS
Figure 21. Settling Time
OPA207 C003_DC.png
Figure 23. Input Offset Voltage vs Input Common-mode Voltage
OPA207 C004_DC.png
Figure 25. Quiescent Current vs Power Supply Voltage
OPA207 C009A_DC.png
Figure 27. Output Voltage vs Output Current (Sourcing)
OPA207 C010_DC.png
Figure 29. Input Offset Voltage vs Temperature

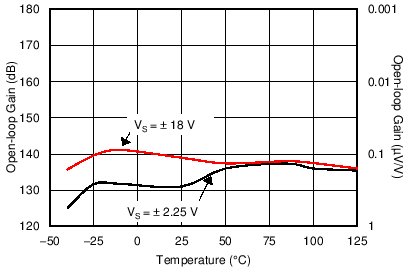

OPA207 C005_DC.png
Figure 31. Open Loop Gain vs Temperature
OPA207 C012_DC.png
Figure 33. Power Supply Rejection Ratio vs Temperature
OPA207 C008_DC.png
Figure 35. Output Short Circuit Current vs Temperature
OPA207 C001_DC.png
Figure 2. Input Referred Offset Voltage Drift Distribution

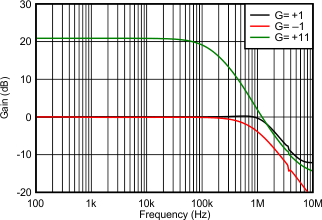

OPA207 ClosedLoopGain.gif
Figure 4. Closed Loop Gain vs Frequency

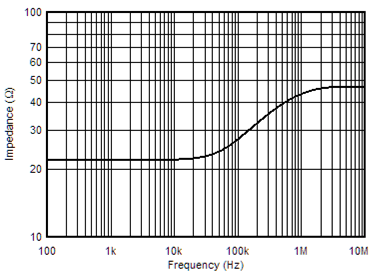

OPA207 Open_Loop_Output_Z.gif
Figure 6. Open-Loop Output Impedance vs Frequency
OPA207 OPA207_Vnoise.gif
Figure 8. Input Voltage Noise Spectral Density vs Frequency
OPA207 Current_Noise.gif
Figure 10. Input Current Noise vs Frequency
OPA207 OPA207_THDNvFreq_3VRMS.gif
VOUT = 3 VRMS
Figure 12. Total Harmonic Distortion + Noise vs Frequency
OPA207 OPA207_OSvCload_Gn1.gif
G = –1 V/V
Figure 14. Overshoot vs Capacitive Load

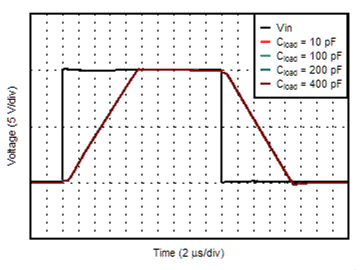

OPA207 LargeSignal_G1_Cload.gif
G = +1 V/V
Figure 16. Large-Signal Step Response

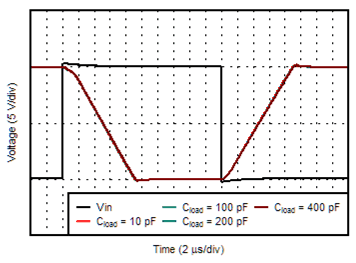

OPA207 LargeSignal_G-1_Cload.gif
G = –1 V/V
Figure 18. Large-Signal Step Response
OPA207 NegOverloadRecovery.gif
Figure 20. Overload Recovery from Negative Overload
OPA207 NoPhaseReversal.gif
VOUT = 3 VRMS
Figure 22. No Phase Reversal
OPA207 C013_DC.png
Figure 24. Input Bias Current vs Input Common-mode Voltage
OPA207 C017_DC.png
Figure 26. Input Offset Voltage vs Power Supply Voltage
OPA207 C009B_DC.png
Figure 28. Output Voltage vs Output Current (Sinking)
OPA207 C014_DC.png
Figure 30. Input Bias Current vs Temperature
OPA207 C011_DC.png
Figure 32. Common-Mode Rejection Ratio vs Temperature
OPA207 C007_DC.png
Figure 34. Quiescent Current vs Temperature
