Typical Characteristics

at TA = 25°C, VS = ±2.5 V, VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2, and CL = 100 pF (unless otherwise noted)

Table 6-1 Table of Graphs
DESCRIPTIONFIGURE
Offset Voltage Production DistributionFigure 6-1
Offset Voltage Drift Distribution From –40°C to +125°CFigure 6-2
Offset Voltage vs TemperatureFigure 6-3
Offset Voltage vs Common-Mode VoltageFigure 6-4
Offset Voltage vs Power SupplyFigure 6-5
Offset Voltage Long Term DriftFigure 6-6
Open-Loop Gain and Phase vs FrequencyFigure 6-7
Closed-Loop Gain and Phase vs FrequencyFigure 6-8
Input Bias Current vs Common-Mode VoltageFigure 6-9
Input Bias Current vs TemperatureFigure 6-10
Output Voltage Swing vs Output Current (Maximum Supply)Figure 6-11
CMRR and PSRR vs FrequencyFigure 6-12
CMRR vs TemperatureFigure 6-13
PSRR vs TemperatureFigure 6-14
0.1-Hz to 10-Hz NoiseFigure 6-15
Input Voltage Noise Spectral Density vs FrequencyFigure 6-16
THD+N Ratio vs FrequencyFigure 6-17
THD+N vs Output AmplitudeFigure 6-18
Spectral ContentFigure 6-19, Figure 6-20
Quiescent Current vs Supply VoltageFigure 6-21
Quiescent Current vs TemperatureFigure 6-22
Open-Loop Gain vs TemperatureFigure 6-23
Open-Loop Output Impedance vs FrequencyFigure 6-24
Small-Signal Overshoot vs Capacitive Load (10-mV Step)Figure 6-25
No Phase ReversalFigure 6-26
Positive Overload RecoveryFigure 6-27
Negative Overload RecoveryFigure 6-28
Small-Signal Step Response (10-mV Step)Figure 6-29, Figure 6-30
Large-Signal Step Response (4-V Step)Figure 6-31 , Figure 6-32
Settling TimeFigure 6-33, Figure 6-34
Short-Circuit Current vs TemperatureFigure 6-35
Maximum Output Voltage vs FrequencyFigure 6-36
EMIRR vs FrequencyFigure 6-37

Figure 6-1 Offset Voltage Production Distribution
GUID-9CB410FA-5683-4620-B899-81C324855655-low.pngFigure 6-3 Offset Voltage vs Temperature

Figure 6-5 Offset Voltage vs Supply Voltage

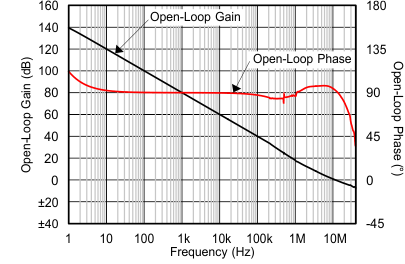

Figure 6-7 Open-Loop Gain and Phase vs Frequency

Figure 6-9 Input Bias Current vs Common-Mode Voltage

Figure 6-11 Output Voltage Swing vs Output Current (Maximum Supply)

Figure 6-13 CMRR vs Temperature

Figure 6-15 0.1-Hz to 10-Hz Noise

Figure 6-17 THD+N Ratio vs Frequency
G = +1, f = 1 kHz, VO = 4.5 VPP, RL = 10 kΩ, BW = 90 kHz
Figure 6-19 Spectral Content (With 10-kΩ Load)

Figure 6-21 Quiescent Current vs Supply Voltage

Figure 6-23 Open-Loop Gain vs Temperature
10-mV step
Figure 6-25 Small-Signal Overshoot vs Capacitive Load

Figure 6-27 Positive Overload Recovery
G = +1, 10-mV step
Figure 6-29 Small-Signal Step Response
Falling output, 4-V Step
Figure 6-31 Large-Signal Step Response
0.01% settling = ±100 µV, 1-V positive step
Figure 6-33 Settling Time

Figure 6-35 Short-Circuit Current vs Temperature
PRF = –10 dBm
Figure 6-37 EMIRR vs Frequency
TA = –40°C to +125°C
Figure 6-2 Offset Voltage Drift Distribution
GUID-DCB1B73F-2E87-4B3C-AB9E-1FF5D071F3D3-low.pngFigure 6-4 Offset Voltage vs Common-Mode Voltage
3 typical units
Figure 6-6 Offset Voltage Long Term Drift

Figure 6-8 Closed-Loop Gain and Phase vs Frequency

Figure 6-10 Input Bias Current vs Temperature

Figure 6-12 CMRR and PSRR vs Frequency

Figure 6-14 PSRR vs Temperature

Figure 6-16 Input Voltage Noise Spectral Density vs Frequency

Figure 6-18 THD+N vs Output Amplitude
G = +1, f = 1 kHz, VO = 4.5 VPP, RL = 2 kΩ, BW = 90 kHz
Figure 6-20 Spectral Content (With 2-kΩ Load)

Figure 6-22 Quiescent Current vs Temperature

Figure 6-24 Open-Loop Output Impedance vs Frequency

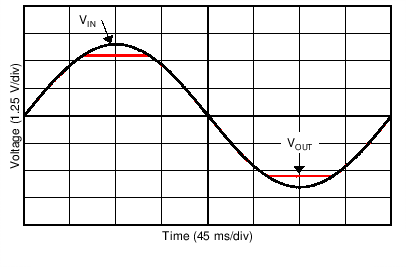

Figure 6-26 No Phase Reversal

Figure 6-28 Negative Overload Recovery
G = –1, 10-mV step
Figure 6-30 Small-Signal Step Response
Rising output, 4-V step
Figure 6-32 Large-Signal Step Response
0.01% settling = ±200 µV, 1-V negative step
Figure 6-34 Settling Time

Figure 6-36 Maximum Output Voltage vs Frequency
