5.6 Typical Characteristics

at TJ = 25°C, VS = ±15V, RL = 2kΩ, and pre-irradiated (unless otherwise noted)

OPA4277-SP Open-Loop Gain and Phase vs Frequency

Figure 5-1 Open-Loop Gain and Phase vs Frequency
OPA4277-SP Input Noise and Current Noise Spectral Density vs Frequency

Figure 5-3 Input Noise and Current Noise Spectral Density vs Frequency

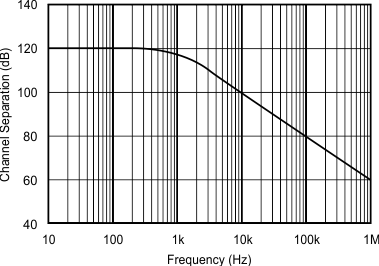

OPA4277-SP Channel Separation vs Frequency
G = 1, measured channel A to D or B to C,
other combinations yield similar or improved rejection
Figure 5-5 Channel Separation vs Frequency
OPA4277-SP AOL, CMR, PSR vs Temperature

Figure 5-7 AOL, CMR, PSR vs Temperature
OPA4277-SP Quiescent Current and Short-Circuit Current vs Temperature


Figure 5-9 Quiescent Current and Short-Circuit Current vs Temperature
OPA4277-SP Change in Input Bias Current vs Common-Mode Voltage
Curve shows normalized change in bias current with respect to VCM = 0V, typical IB ranges from –0.5nA to 0.5nA at VCM = 0V
Figure 5-11 Change in Input Bias Current vs Common-Mode Voltage
OPA4277-SP Settling Time vs Closed-Loop Gain
10V step CL = 1500pF
Figure 5-13 Settling Time vs Closed-Loop Gain

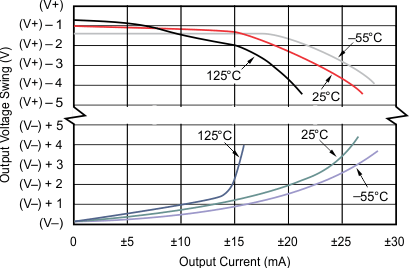

OPA4277-SP Output Voltage Swing vs Output Current

Figure 5-15 Output Voltage Swing vs Output Current
OPA4277-SP Large-Signal Step Response
G = 1 CL = 1500pF VS = ±15V
Figure 5-17 Large-Signal Step Response
OPA4277-SP Small-Signal Step Response
G = 1 CL = 1500pF VS = ±15V
Figure 5-19 Small-Signal Step Response
OPA4277-SP Power Supply and Common-Mode Rejection vs Frequency

Figure 5-2 Power Supply and Common-Mode Rejection vs Frequency
OPA4277-SP Input Noise Voltage vs Time
Noise signal is bandwidth limited to lie between 0.1Hz and 10Hz
Figure 5-4 Input Noise Voltage vs Time
OPA4277-SP Total Harmonic Distortion + Noise vs Frequency
VOUT = 3.5Vrms

Figure 5-6 Total Harmonic Distortion + Noise vs Frequency
OPA4277-SP Input Bias Current vs Temperature
Curves represent typical production units
Figure 5-8 Input Bias Current vs Temperature
OPA4277-SP Change in Input Bias Current vs Power Supply Voltage
Curve shows normalized change in bias current with respect to VS = ±10V (+20V), typical IB ranges from –0.5nA to 0.5nA at VS = ±10V
Figure 5-10 Change in Input Bias Current vs Power Supply Voltage
OPA4277-SP Quiescent Current vs Supply Voltage
Per amplifier

Figure 5-12 Quiescent Current vs Supply Voltage
OPA4277-SP Maximum Output Voltage vs Frequency

Figure 5-14 Maximum Output Voltage vs Frequency
OPA4277-SP Small-Signal Overshoot vs Load Capacitance

Figure 5-16 Small-Signal Overshoot vs Load Capacitance
OPA4277-SP Small-Signal Step Response
G = 1 CL = 0pF VS = ±15V
Figure 5-18 Small-Signal Step Response
