6.8 Typical Characteristics

at TA = 25°C, V+ = 2.75V, V– = –2.75V, RL = 10kΩ connected to VS / 2, VCM = VS / 2, and VOUT = VS / 2 (unless otherwise noted)

OPA310 OPA2310 OPA4310 Offset Voltage Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 25°C
No. of devices = 70 Mean = –36µV Sigma = 215µV
Figure 6-1 Offset Voltage Distribution Histogram

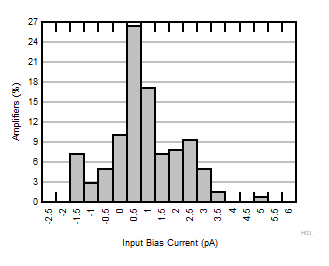

OPA310 OPA2310 OPA4310 Input Bias Current Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 25°C
No. of devices = 140 Mean = 0.6pA Sigma = 1.2pA
Figure 6-3 Input Bias Current Distribution Histogram
OPA310 OPA2310 OPA4310 Input Offset Current Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 25°C
No. of devices = 140 Mean = 0.2pA Sigma = 1.5pA
Figure 6-5 Input Offset Current Distribution Histogram
OPA310 OPA2310 OPA4310 Input Offset Voltage vs Temperature
VS = 5.5V, VCM = V– No. of devices = 72
Figure 6-7 Input Offset Voltage vs Temperature

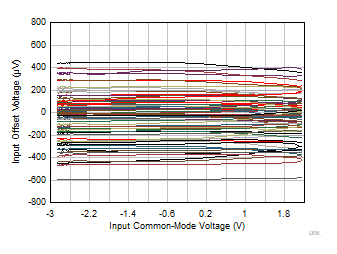

OPA310 OPA2310 OPA4310 Offset Voltage vs Common-Mode
V+ = 2.75V, V– = –2.75V
No. of devices = 72
Figure 6-9 Offset Voltage vs Common-Mode
OPA310 OPA2310 OPA4310 Offset Voltage vs Common-Mode
V+ = 2.75V, V– = –2.75V, VCM > (V+) – 0.6V
No. of devices = 72
Figure 6-11 Offset Voltage vs Common-Mode
OPA310 OPA2310 OPA4310 IB vs Temperature
VS = 5.5V, VCM = VS/2
Figure 6-13 IB vs Temperature
OPA310 OPA2310 OPA4310 IB vs Common-Mode Voltage
V+ = 2.75V, V– = –2.75V, VCM = VS/2
Figure 6-15 IB vs Common-Mode Voltage
OPA310 OPA2310 OPA4310 Open-Loop Gain vs Temperature
RL = 10kΩ
Figure 6-17 Open-Loop Gain vs Temperature
OPA310 OPA2310 OPA4310 Open-Loop Output Impedance vs FrequencyFigure 6-19 Open-Loop Output Impedance vs Frequency

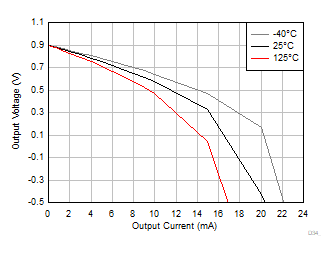

OPA310 OPA2310 OPA4310 Output Voltage Swing vs Output Current (Sourcing)
V+ = 2.75V, V– = –2.75 V
Figure 6-21 Output Voltage Swing vs Output Current (Sourcing)
OPA310 OPA2310 OPA4310 Output Voltage Swing vs Output Current (Sourcing)
V+ = 0.9V, V– = –0.9V
Figure 6-23 Output Voltage Swing vs Output Current (Sourcing)

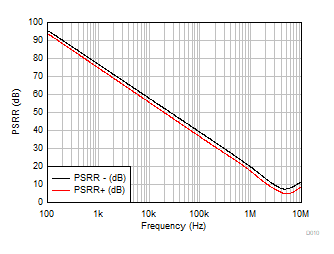

OPA310 OPA2310 OPA4310 PSRR vs FrequencyFigure 6-25 PSRR vs Frequency

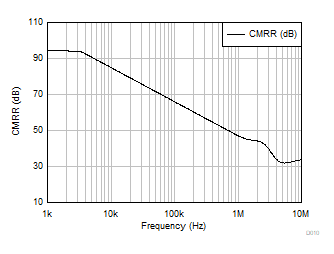

OPA310 OPA2310 OPA4310 CMRR vs FrequencyFigure 6-27 CMRR vs Frequency

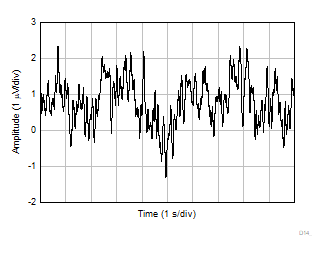

OPA310 OPA2310 OPA4310 0.1Hz to 10Hz Voltage Noise in Time Domain Figure 6-29 0.1Hz to 10Hz Voltage Noise in Time Domain
OPA310 OPA2310 OPA4310 THD + N vs Frequency
VS = 5.5V VCM = 2.5V G = 1
BW = 80kHz VOUT = 0.5VRMS
Figure 6-31 THD + N vs Frequency

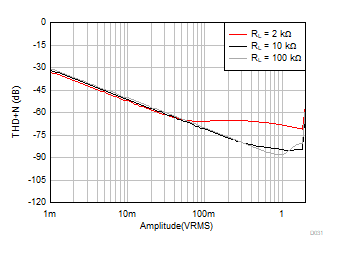

OPA310 OPA2310 OPA4310 THD + N vs Amplitude
VS = 5.5V VCM = 2.5V f = 1kHz
G = 1 BW = 80kHz
Figure 6-33 THD + N vs Amplitude

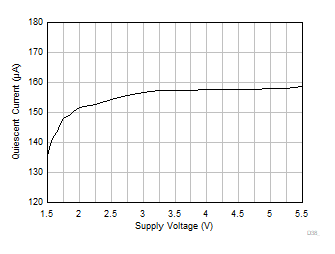

OPA310 OPA2310 OPA4310 Quiescent Current vs Supply Voltage
VCM = VS/2
Figure 6-35 Quiescent Current vs Supply Voltage

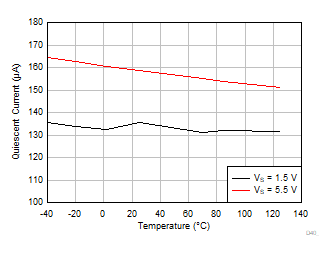

OPA310 OPA2310 OPA4310 Quiescent Current vs Temperature
VCM = VS/2
Figure 6-37 Quiescent Current vs Temperature
OPA310 OPA2310 OPA4310 Small Signal Overshoot vs Capacitive Load
G = 1 VIN = 100mVpp
Figure 6-39 Small Signal Overshoot vs Capacitive Load
OPA310 OPA2310 OPA4310 No Phase Reversal
G = 1 VIN = 6VPP
Figure 6-41 No Phase Reversal
OPA310 OPA2310 OPA4310 Overload Recovery
G = –10 VIN = 600mVPP
Figure 6-43 Overload Recovery
OPA310 OPA2310 OPA4310 Small-Signal Step Response
G = –1 VIN = 10mVPP CL = 10pF
Figure 6-45 Small-Signal Step Response
OPA310 OPA2310 OPA4310 Large-Signal Settling Time (Negative)
G = 1 VIN = 4VPP CL = 10pF
Figure 6-47 Large-Signal Settling Time (Negative)
OPA310 OPA2310 OPA4310 Large-Signal Step Response
G = –1 VIN = 4VPP CL = 10pF
Figure 6-49 Large-Signal Step Response
OPA310 OPA2310 OPA4310 Short-Circuit Current vs Temperature
VS = 5.5V
Figure 6-51 Short-Circuit Current vs Temperature

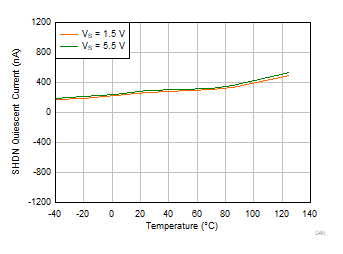

OPA310 OPA2310 OPA4310 Shutdown Mode Quiescent Current vs TemperatureFigure 6-53 Shutdown Mode Quiescent Current vs Temperature
OPA310 OPA2310 OPA4310 Amplifier Disable Response
V+ = 2.75V, V– = –2.75V
Figure 6-55 Amplifier Disable Response
OPA310 OPA2310 OPA4310 Channel SeparationFigure 6-57 Channel Separation
OPA310 OPA2310 OPA4310 Offset Voltage Drift Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = –40°C to +125°C
No. of devices = 70
Mean = 0.5µV/°C Sigma = 0.3µV/°C

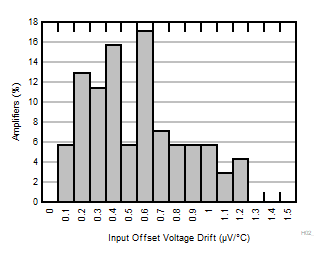

Figure 6-2 Offset Voltage Drift Distribution Histogram

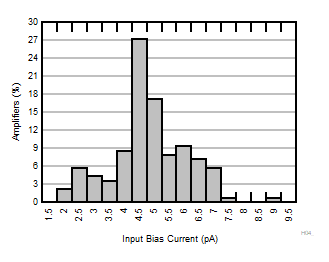

OPA310 OPA2310 OPA4310 Input Bias Current Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 85°C
No. of devices = 140 Mean = 4.6pA Sigma = 1.3pA
Figure 6-4 Input Bias Current Distribution Histogram

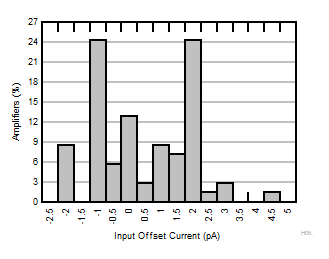

OPA310 OPA2310 OPA4310 Input Offset Current Distribution Histogram
VS = 5.5V VCM = VS / 2 TA = 85°C
No. of devices = 70 Mean = 0.3pA Sigma = 1.6pA
Figure 6-6 Input Offset Current Distribution Histogram
OPA310 OPA2310 OPA4310 Input Offset Voltage vs Temperature
VS = 5.5V, VCM = V+ No. of devices = 72
Figure 6-8 Input Offset Voltage vs Temperature
OPA310 OPA2310 OPA4310 Offset Voltage vs Common-Mode
 V+ = 2.75V, V– = –2.75V, (V–) < VCM < (V+) – 0.6V
No. of devices = 72
Figure 6-10 Offset Voltage vs Common-Mode

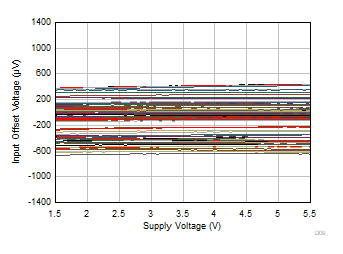

OPA310 OPA2310 OPA4310 Offset Voltage vs Supply Voltage
VCM = (V–) No. of devices = 72
Figure 6-12 Offset Voltage vs Supply Voltage
OPA310 OPA2310 OPA4310 IOS vs Temperature
VS = 5.5V, VCM = VS/2
Figure 6-14 IOS vs Temperature
OPA310 OPA2310 OPA4310 IOS vs Common-Mode Voltage
V+ = 2.75V, V– = –2.75V, VCM = VS/2
Figure 6-16 IOS vs Common-Mode Voltage
OPA310 OPA2310 OPA4310 Open-Loop Gain and Phase vs Frequency
CL = 10pF
Figure 6-18 Open-Loop Gain and Phase vs Frequency
OPA310 OPA2310 OPA4310 Closed-Loop Gain vs Frequency
CL = 10pF
Figure 6-20 Closed-Loop Gain vs Frequency

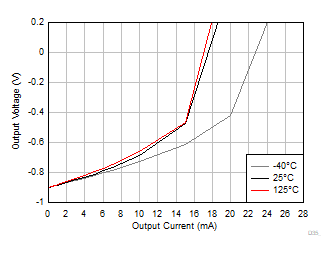

OPA310 OPA2310 OPA4310 Output Voltage Swing vs Output Current (Sinking)
V+ = 2.75V, V– = –2.75V
Figure 6-22 Output Voltage Swing vs Output Current (Sinking)
OPA310 OPA2310 OPA4310 Output Voltage Swing vs Output Current (Sinking)
V+ = 0.9V, V– = –0.9V
Figure 6-24 Output Voltage Swing vs Output Current (Sinking)
OPA310 OPA2310 OPA4310 DC PSRR vs Temperature
VS = 1.5V to 5.5V
Figure 6-26 DC PSRR vs Temperature
OPA310 OPA2310 OPA4310 DC CMRR vs Temperature
VS = 5.5V, (V–) < VCM < (V+) – 0.6V
Figure 6-28 DC CMRR vs Temperature
OPA310 OPA2310 OPA4310 Input Voltage Noise Spectral DensityFigure 6-30 Input Voltage Noise Spectral Density
OPA310 OPA2310 OPA4310 THD + N vs Frequency
VS = 5.5V VCM = 2.5V G = –1
BW = 80kHz VOUT = 0.5VRMS
Figure 6-32 THD + N vs Frequency
OPA310 OPA2310 OPA4310 THD + N vs Amplitude
VS = 5.5V VCM = 2.5V f = 1kHz
G = –1 BW = 80kHz
Figure 6-34 THD + N vs Amplitude

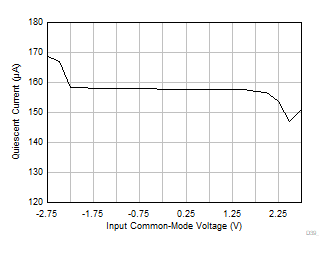

OPA310 OPA2310 OPA4310 Quiescent Current vs Common-Mode Voltage
V+ = 2.75V, V– = –2.75V
Figure 6-36 Quiescent Current vs Common-Mode Voltage
OPA310 OPA2310 OPA4310 Small Signal Overshoot vs Capacitive Load
G = –1 VIN = 100mVpp
Figure 6-38 Small Signal Overshoot vs Capacitive Load
OPA310 OPA2310 OPA4310 Phase Margin vs Capacitive LoadFigure 6-40 Phase Margin vs Capacitive Load
OPA310 OPA2310 OPA4310 Overload Recovery
G = –10 VIN = 600mVPP
Figure 6-42 Overload Recovery
OPA310 OPA2310 OPA4310 Small-Signal Step Response
G = 1 VIN = 10mVPP CL = 10pF
Figure 6-44 Small-Signal Step Response

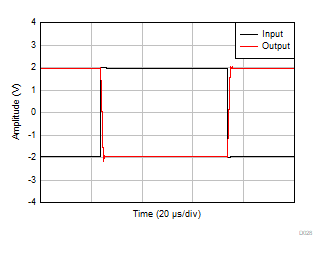

OPA310 OPA2310 OPA4310 Large-Signal Step Response
G = 1 VIN = 4VPP CL = 10pF
Figure 6-46 Large-Signal Step Response
OPA310 OPA2310 OPA4310 Large-Signal Settling Time (Positive)
G = 1 VIN = 4VPP CL = 10pF

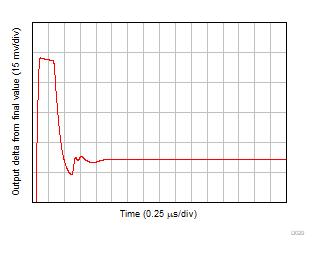

Figure 6-48 Large-Signal Settling Time (Positive)
OPA310 OPA2310 OPA4310 Maximum Output Voltage vs FrequencyFigure 6-50 Maximum Output Voltage vs Frequency

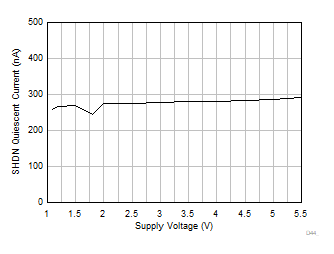

OPA310 OPA2310 OPA4310 Shutdown Mode Quiescent Current vs Supply VoltageFigure 6-52 Shutdown Mode Quiescent Current vs Supply Voltage
OPA310 OPA2310 OPA4310 Amplifier Enable Response
V+ = 2.75V, V– = –2.75V
Figure 6-54 Amplifier Enable Response
OPA310 OPA2310 OPA4310 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs FrequencyFigure 6-56 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency
