8.1 Application Information

SN74HC4851-Q1 Injection-Current Coupling Specification Figure 8-1 Injection-Current Coupling Specification

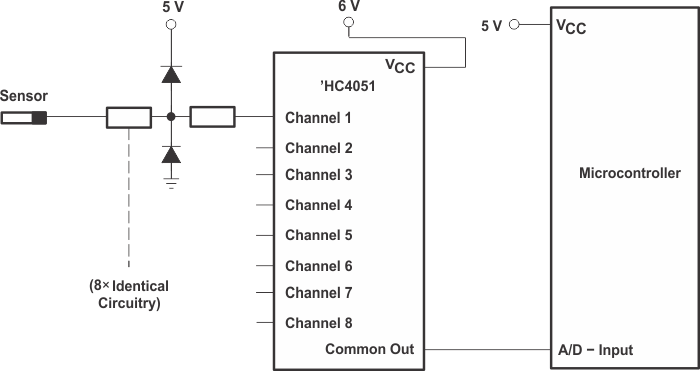

SN74HC4851-Q1 Alternate Solution Requires 32 Passive Components and One Extra 6V Regulator to Suppress Injection Current Into a Standard ’HC4051 Multiplexer Figure 8-2 Alternate Solution Requires 32 Passive Components and One Extra 6V Regulator to Suppress Injection Current Into a Standard ’HC4051 Multiplexer
SN74HC4851-Q1 Solution by Applying the ’HC4851 Multiplexer Figure 8-3 Solution by Applying the ’HC4851 Multiplexer

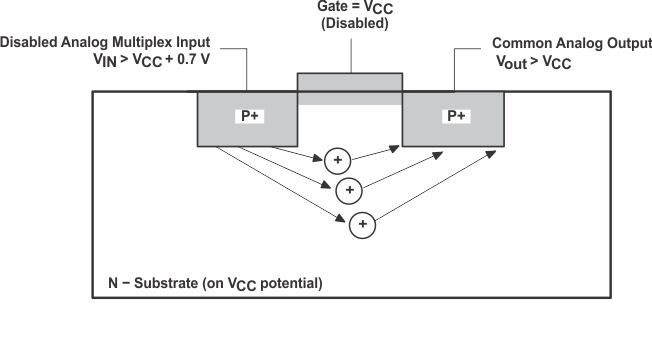

SN74HC4851-Q1 Diagram of Bipolar Coupling Mechanism (Appears if VIN Exceeds VCC, Driving Injection Current Into the Substrate) Figure 8-4 Diagram of Bipolar Coupling Mechanism (Appears if VIN Exceeds VCC, Driving Injection Current Into the Substrate)
