7 Parameter Measurement Information

  • Phase relationships between waveforms were chosen arbitrarily. All input pulses are supplied by generators having the following characteristics: PRR ≤ 1 MHz, ZO = 50 Ω, tt < 6 ns.
  • The outputs are measured one at a time, with one input transition per measurement.
CL= 50 pF and includes probe and jig capacitance.
Figure 7-1 Load Circuit
GUID-CBF1EEC1-9EEB-40E4-8725-A07EE6187569-low.gifFigure 7-3 Voltage Waveforms Setup and Hold Times
The maximum between tPLH and tPHL is used for tpd.
Figure 7-5 Voltage Waveforms Propagation Delays
tt is the greater of tr and tf.

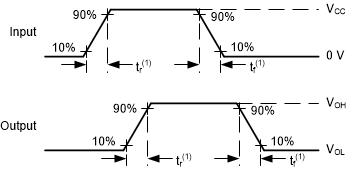

Figure 7-2 Voltage Waveforms Transition Times
GUID-38B68463-B239-441D-BAE9-10D04047835C-low.gifFigure 7-4 Voltage Waveforms Pulse Width
