5.8 Typical Characteristics

Figure 5-1 Temperature Drift For Different Average Temperature Coefficients

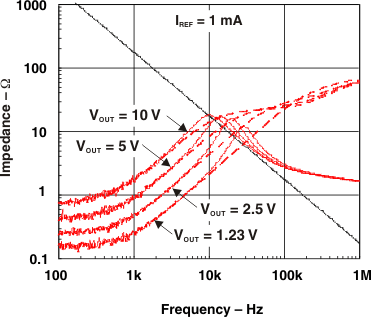

Figure 5-3 Output Impedance vs Frequency

Figure 5-5 Reverse Characteristics

Figure 5-7 Output Saturation vs Output Current

Figure 5-9 Reference Voltage vs Output Voltage

Figure 5-11 Feedback Current vs Output Voltage

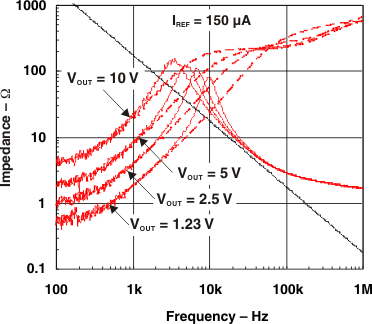

Figure 5-2 Output Impedance vs Frequency

Figure 5-4 Noise Voltage vs Frequency

Figure 5-6 Large Signal Pulse Response

Figure 5-8 Reverse Current vs Reverse Voltage

Figure 5-10 Reference Voltage vs Temperature
