6.12 Typical Characteristics

TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Distribution of TLE2021 Input Offset Voltage

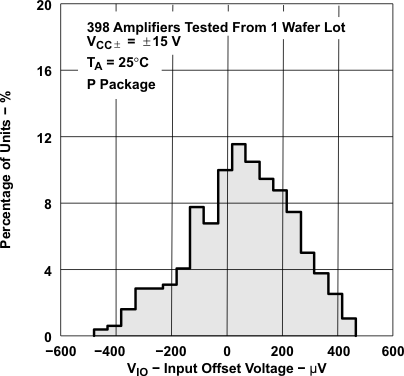

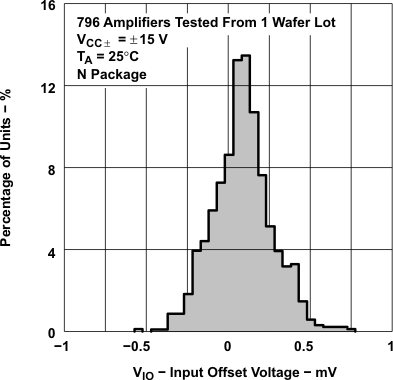

Figure 6-1 Distribution of TLE2021 Input Offset Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Distribution of TLE2024 Input Offset Voltage

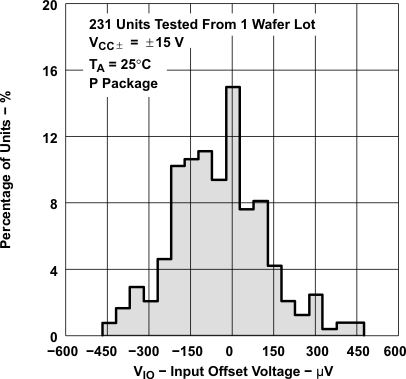

Figure 6-3 Distribution of TLE2024 Input Offset Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 Input Bias Current vs Common-Mode Input Voltage

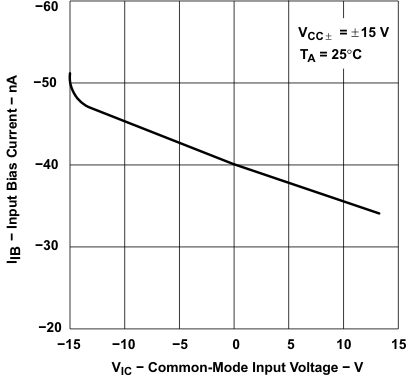

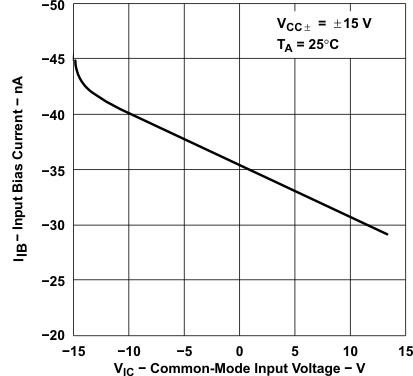

Figure 6-5 TLE2022 Input Bias Current vs Common-Mode Input Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Input Bias Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

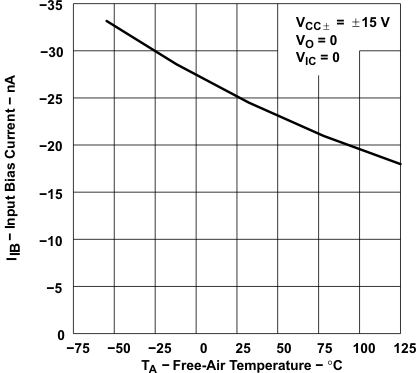

Figure 6-7 TLE2021 Input Bias Current vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2024 Input Bias Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

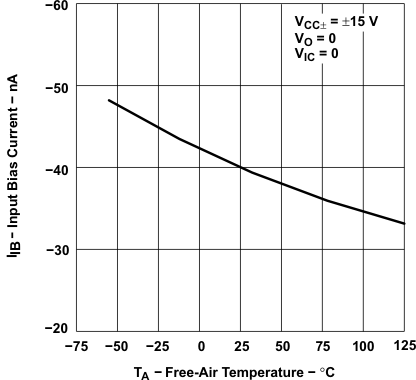

Figure 6-9 TLE2024 Input Bias Current vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Maximum Peak Output Voltage vs Output Current

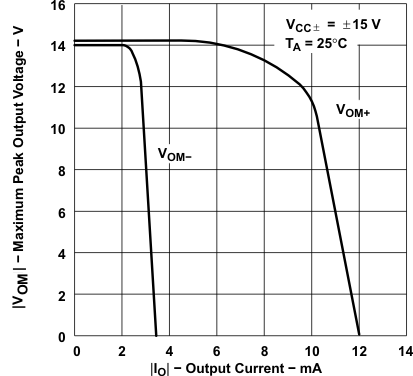

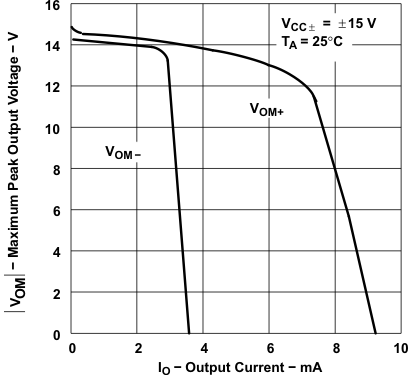

Figure 6-11 TLE2021 Maximum Peak Output Voltage vs Output Current
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2024 Maximum Peak Output Voltage vs Output Current

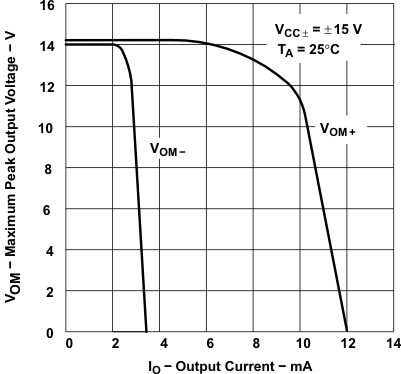

Figure 6-13 TLE2024 Maximum Peak Output Voltage vs Output Current
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 High-Level Output Voltage vs High-Level Output Current

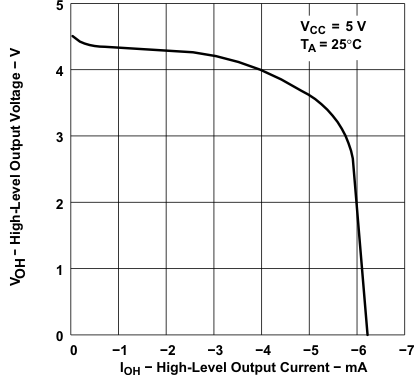

Figure 6-15 TLE2021 High-Level Output Voltage vs High-Level Output Current
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM High-Level Output Voltage vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 6-17 High-Level Output Voltage vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Low-Level Output Voltage vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 6-19 Low-Level Output Voltage vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Maximum Peak-to-Peak Output Voltage vs Frequency

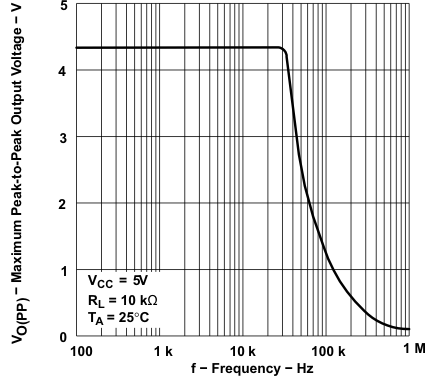

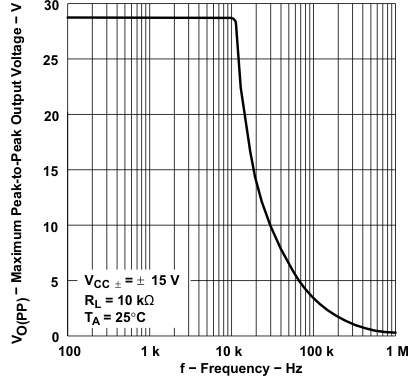

Figure 6-21 Maximum Peak-to-Peak Output Voltage vs Frequency
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Short-Circuit Output Current vs Supply Voltage

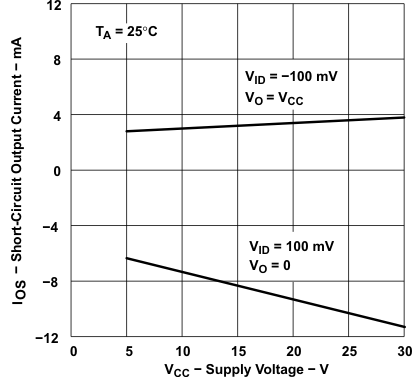

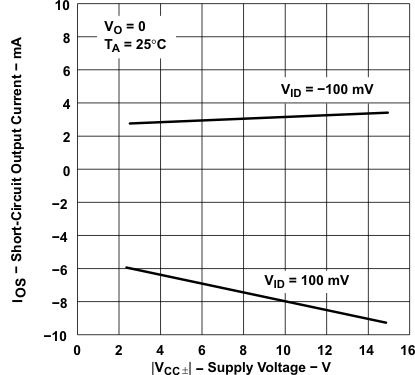

Figure 6-23 TLE2021 Short-Circuit Output Current vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Short-Circuit Output Current vs Supply Voltage


Figure 6-25 TLE2021 Short-Circuit Output Current vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Supply Current vs Supply Voltage

Figure 6-27 TLE2021 Supply Current vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2024 Supply Current vs Supply Voltage


Figure 6-29 TLE2024 Supply Current vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 Supply Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

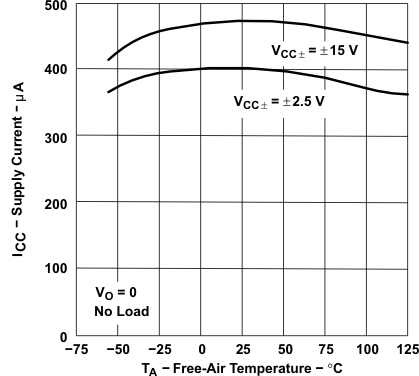

Figure 6-31 TLE2022 Supply Current vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE202x Common-Mode Rejection Ratio vs Frequency

Figure 6-33 TLE202x Common-Mode Rejection Ratio vs Frequency
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Voltage-Follower Small-Signal Pulse Response

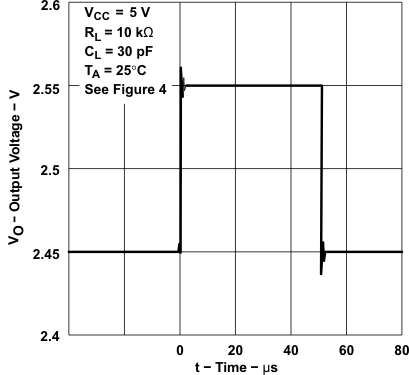

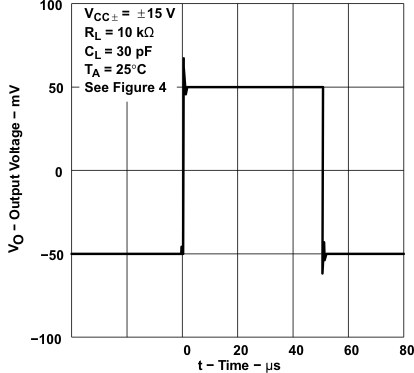

Figure 6-35 Voltage-Follower Small-Signal Pulse Response
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 Voltage-Follower Large-Signal Pulse Response

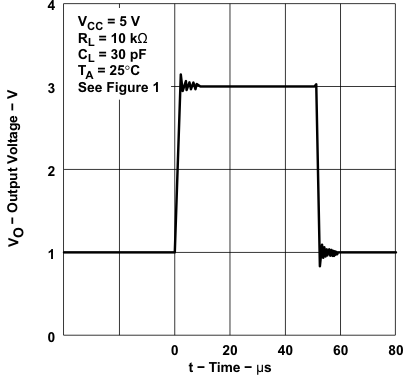

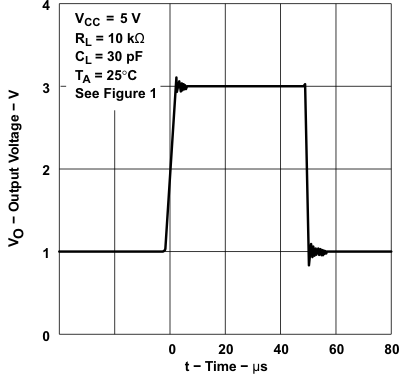

Figure 6-37 TLE2022 Voltage-Follower Large-Signal Pulse Response
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Voltage-Follower Large-Signal Pulse Response

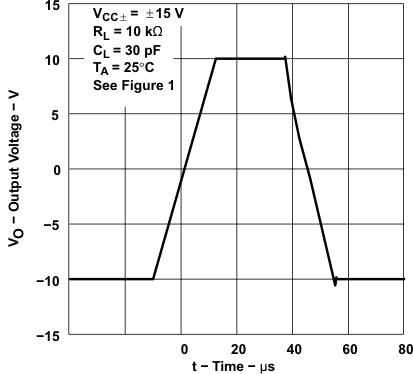

Figure 6-39 TLE2021 Voltage-Follower Large-Signal Pulse Response
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2024 Voltage-Follower Large-Signal Pulse Response

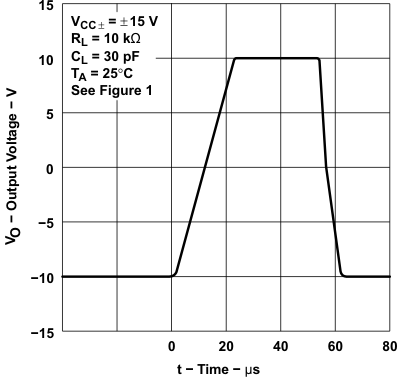

Figure 6-41 TLE2024 Voltage-Follower Large-Signal Pulse Response
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Peak-to-Peak Equivalent Input Noise Voltage 0.1Hz to 10Hz

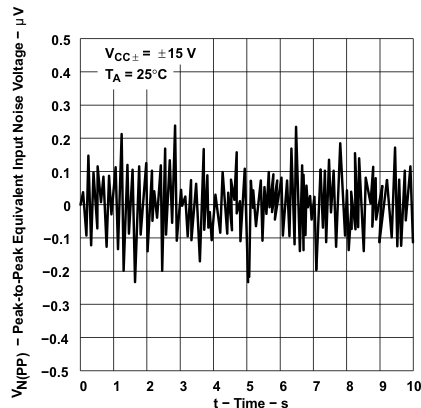

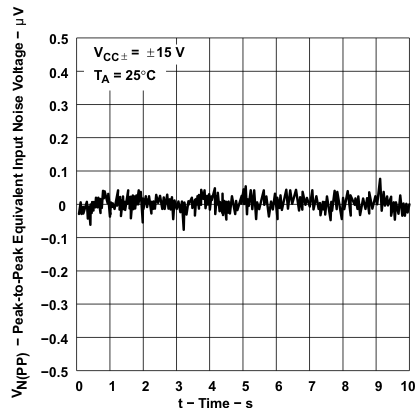

Figure 6-43 Peak-to-Peak Equivalent Input Noise Voltage 0.1Hz to 10Hz
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Unity-Gain Bandwidth vs Supply Voltage

Figure 6-45 TLE2021 Unity-Gain Bandwidth vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Phase Margin vs Supply Voltage

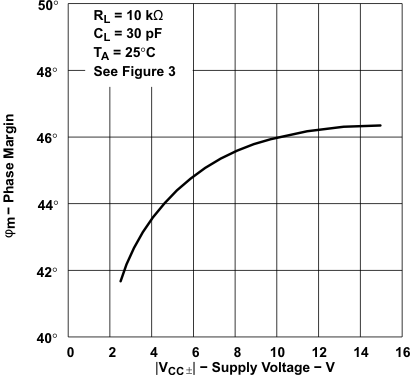

Figure 6-47 TLE2021 Phase Margin vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Phase Margin vs Load Capacitance

Figure 6-49 TLE2021 Phase Margin vs Load Capacitance
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Distribution of TLE2022 Input Offset Voltage

Figure 6-2 Distribution of TLE2022 Input Offset Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Input Bias Current vs Common-Mode Input Voltage

Figure 6-4 TLE2021 Input Bias Current vs Common-Mode Input Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2024 Input Bias Current vs Common-Mode Input Voltage

Figure 6-6 TLE2024 Input Bias Current vs Common-Mode Input Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 Input Bias Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

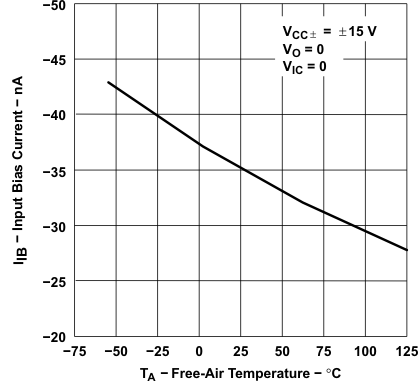

Figure 6-8 TLE2022 Input Bias Current vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Input Current vs Differential Input Voltage

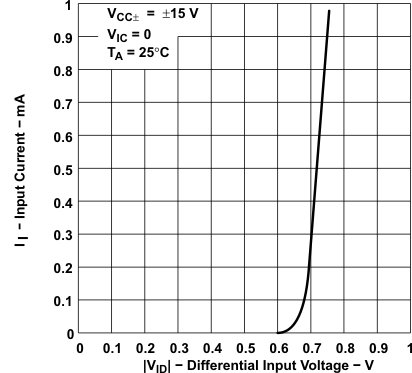

Figure 6-10 Input Current vs Differential Input Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 Maximum Peak Output Voltage vs Output Current

Figure 6-12 TLE2022 Maximum Peak Output Voltage vs Output Current
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Maximum Peak Output Voltage vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices

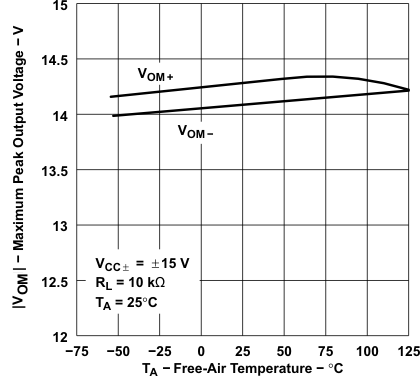

Figure 6-14 Maximum Peak Output Voltage vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 and TLE2024 High-Level Output Voltage vs High-Level Output Current

Figure 6-16 TLE2022 and TLE2024 High-Level Output Voltage vs High-Level Output Current
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Low-Level Output Voltage vs Low-Level Output Current


Figure 6-18 Low-Level Output Voltage vs Low-Level Output Current
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Maximum Peak-to-Peak Output Voltage Vs Frequency


Figure 6-20 Maximum Peak-to-Peak Output Voltage Vs Frequency
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Large-Signal Differential Voltage Amplification and Phase Shift vs Frequency

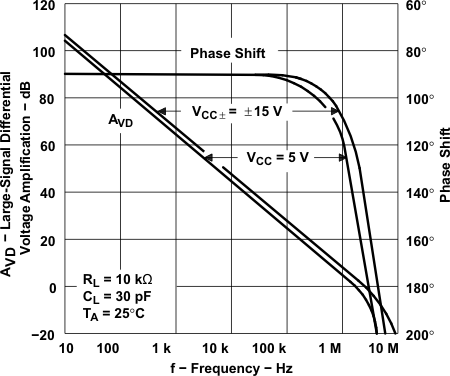

Figure 6-22 Large-Signal Differential Voltage Amplification and Phase Shift vs Frequency
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 and TLE2024 Short-Circuit Output Current vs Supply Voltage

Figure 6-24 TLE2022 and TLE2024 Short-Circuit Output Current vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Short-Circuit Output Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 6-26 TLE2021 Short-Circuit Output Current vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 Supply Current vs Supply Voltage

Figure 6-28 TLE2022 Supply Current vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Supply Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 6-30 TLE2021 Supply Current vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2024 Supply Current vs Free-Air Temperature
Data at high and low temperatures applicable only within rated operating free-air temperature ranges of the various devices
Figure 6-32 TLE2024 Supply Current vs Free-Air Temperature
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Voltage-Follower Small-Signal Pulse Response

Figure 6-34 Voltage-Follower Small-Signal Pulse Response

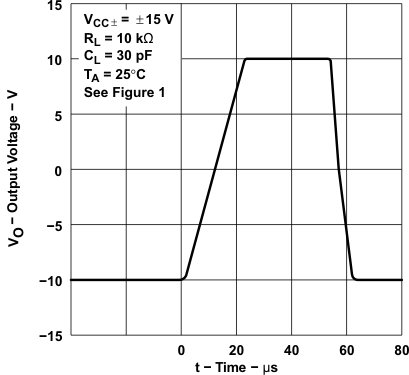

TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2021 Voltage-Follower Large-Signal Pulse Response

Figure 6-36 TLE2021 Voltage-Follower Large-Signal Pulse Response
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2024 Voltage-Follower Large-Scale Pulse Response

Figure 6-38 TLE2024 Voltage-Follower Large-Scale Pulse Response
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 Voltage-Follower Large-Signal Pulse Response

Figure 6-40 TLE2022 Voltage-Follower Large-Signal Pulse Response
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Peak-to-Peak Equivalent Input Noise Voltage 0.1Hz to 1Hz

Figure 6-42 Peak-to-Peak Equivalent Input Noise Voltage 0.1Hz to 1Hz
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM Equivalent Input Noise Voltage vs Frequency

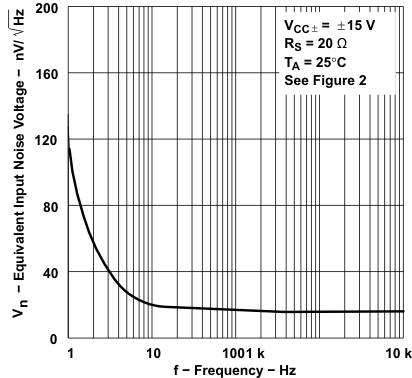

Figure 6-44 Equivalent Input Noise Voltage vs Frequency
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 and TLE2024 Unity-Gain Bandwidth vs Supply Voltage

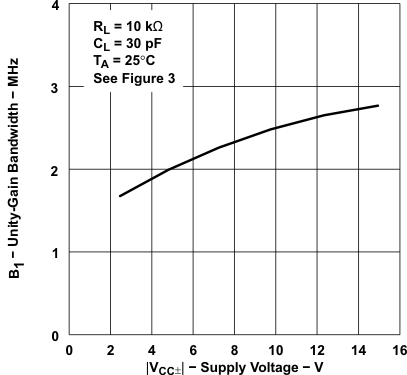

Figure 6-46 TLE2022 and TLE2024 Unity-Gain Bandwidth vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 and TLE2024 Phase Margin vs Supply Voltage

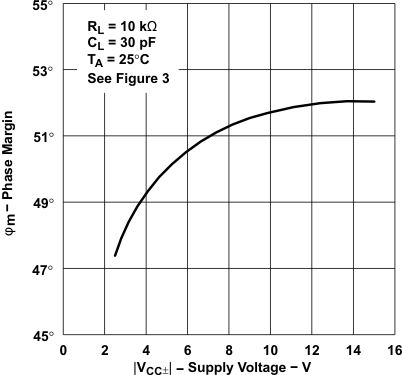

Figure 6-48 TLE2022 and TLE2024 Phase Margin vs Supply Voltage
TLE2021 TLE2021A TLE2021M TLE2022 TLE2022A TLE2022AM TLE2022B TLE2022M TLE2024 TLE2024A TLE2024B TLE2024BM TLE2022 and TLE2024 Phase Margin vs Load Capacitance

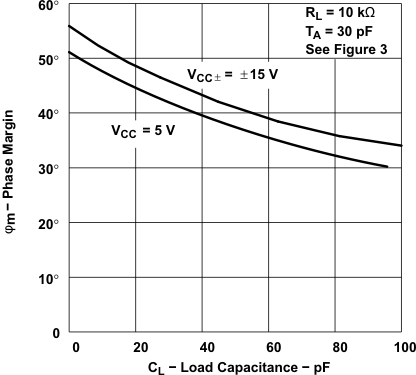

Figure 6-50 TLE2022 and TLE2024 Phase Margin vs Load Capacitance
