6.8 Typical Characteristics: VIN = 12 V

Refer to Section 8.2 for circuit designs.

VLDOIN = VOUT

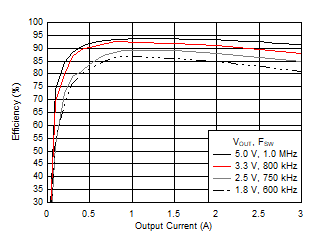

Figure 6-7 Efficiency
COUT = 2 × 47-µF ceramic, 25-V, 1206 case size

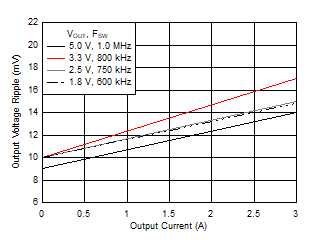

Figure 6-9 Output Voltage Ripple
Device soldered to a 64-mm × 83-mm, 4-layer PCB

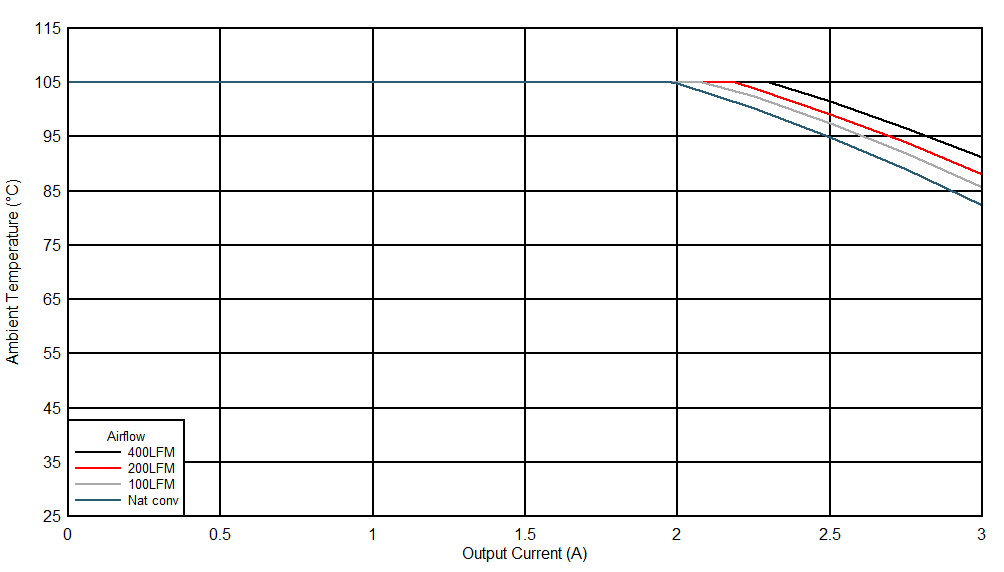

Figure 6-11 Safe Operating Area
VOUT = 3.3 V, FSW = 800 kHz
VLDOIN = VOUT
Figure 6-8 Power Dissipation
Device soldered to a 64-mm × 83-mm, 4-layer PCB
Figure 6-10 Safe Operating Area
VOUT = 1.8 V, FSW = 600 kHz
Device soldered to a 64-mm × 83-mm, 4-layer PCB
Figure 6-12 Safe Operating Area
VOUT = 5.0 V, FSW = 1 MHz
