7.6 Typical Characteristics

at TA = 25 °C, (unless otherwise noted)




Figure 7-1 Resistance vs. Ambient Temperature Using Multiple Bias Currents

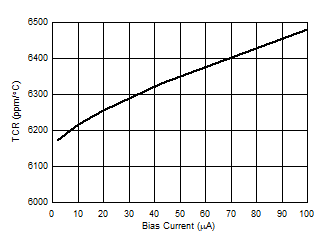

Figure 7-3 TCR as a Function of Sense Current, ISNS



Figure 7-5 Supply Dependence Resistance vs. Bias Current
TMP64: VSNS = 1 V
Figure 7-7 Step Response
TMP64: Stirred Liquid. Temperature: 25 °C to 125 °C
Figure 7-9 DYA Thermal Response Time
RBias = 47 kΩ with ±0.01 % Tolerance
Figure 7-2 Resistance vs. Ambient Temperature Using Multiple Bias Voltages
RBias = 47 kΩ with ±0.01% Tolerance
Figure 7-4 TCR as a Function of Sense Voltage, VSNS
RBias = 47 kΩ with ±0.01% Tolerance

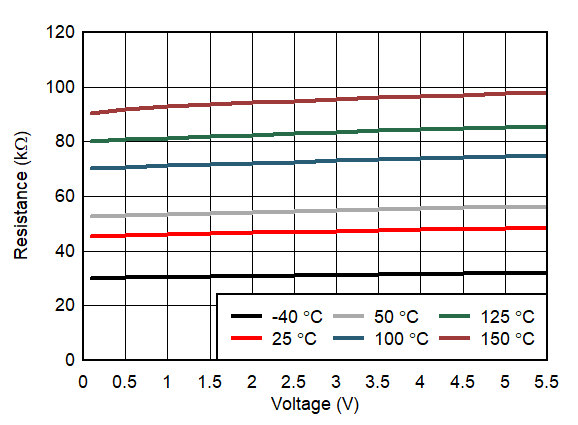

Figure 7-6 Supply Dependence R vs. VBias
TMP64: Stirred Liquid. Temperature: 25 °C to 125 °C
Figure 7-8 DEC Thermal Response Time
TMP64: Still Air
Figure 7-10 Thermal Response Time
