8.9.6 Multichannel Buffered Serial Port (McBSP) Module

The McBSP module has the following features:

  • Compatible to McBSP in TMS320C28x/TMS320F28x DSP devices
  • Full-duplex communication
  • Double-buffered data registers that allow a continuous data stream
  • Independent framing and clocking for receive and transmit
  • External shift clock generation or an internal programmable frequency shift clock
  • A wide selection of data sizes including 8-, 12-, 16-, 20-, 24-, or 32-bits
  • 8-bit data transfers with LSB or MSB first
  • Programmable polarity for both frame synchronization and data clocks
  • Highly programmable internal clock and frame generation
  • Direct interface to industry-standard CODECs, Analog Interface Chips (AICs), and other serially connected analog-to-digital (A/D) and digital-to-analog (D/A) devices
  • Works with SPI-compatible devices
  • The following application interfaces can be supported on the McBSP:
    • T1/E1 framers
    • IOM-2 compliant devices
    • AC97-compliant devices (the necessary multiphase frame synchronization capability is provided.)
    • IIS-compliant devices
    • SPI
  • McBSP clock rate,

    where CLKSRG source could be LSPCLK, CLKX, or CLKR. Serial port performance is limited by I/O buffer switching speed. Internal prescalers must be adjusted such that the peripheral speed is less than the I/O buffer speed limit.

Note:

See Section 8.9 for maximum I/O pin toggling speed.

Note:

On the 80-pin package, only the clock-stop mode (SPI) of the McBSP is supported.

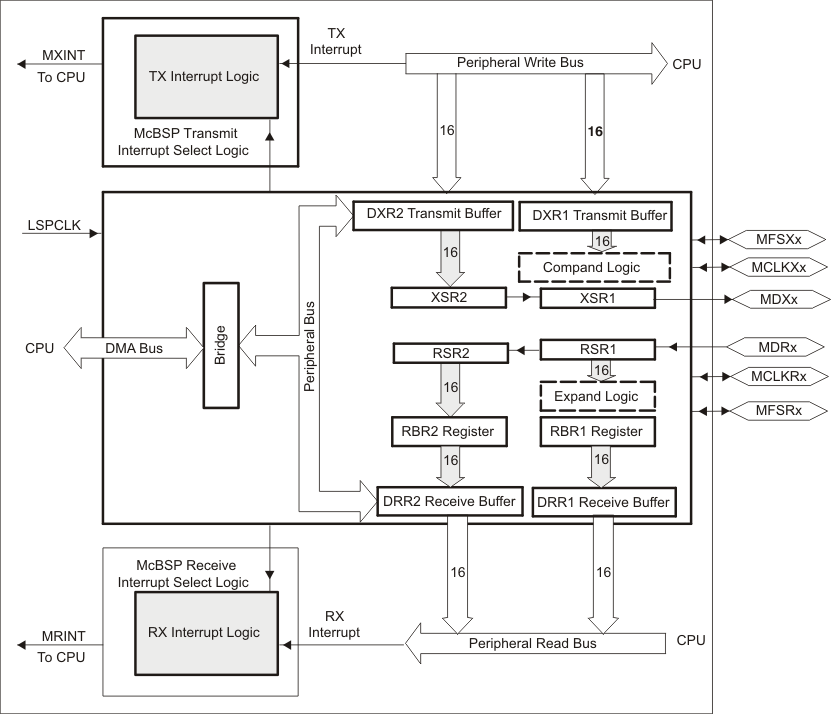

Figure 8-38 shows the block diagram of the McBSP module.

GUID-3EECB700-6CB0-462D-9403-704FA6A3012A-low.gifFigure 8-38 McBSP Module

Table 8-29 provides a summary of the McBSP registers.

Table 8-29 McBSP Register Summary
NAMEMcBSP-A ADDRESSTYPERESET VALUEDESCRIPTION
Data Registers, Receive, Transmit
DRR20x5000R0x0000McBSP Data Receive Register 2
DRR10x5001R0x0000McBSP Data Receive Register 1
DXR20x5002W0x0000McBSP Data Transmit Register 2
DXR10x5003W0x0000McBSP Data Transmit Register 1
McBSP Control Registers
SPCR20x5004R/W0x0000McBSP Serial Port Control Register 2
SPCR10x5005R/W0x0000McBSP Serial Port Control Register 1
RCR20x5006R/W0x0000McBSP Receive Control Register 2
RCR10x5007R/W0x0000McBSP Receive Control Register 1
XCR20x5008R/W0x0000McBSP Transmit Control Register 2
XCR10x5009R/W0x0000McBSP Transmit Control Register 1
SRGR20x500AR/W0x0000McBSP Sample Rate Generator Register 2
SRGR10x500BR/W0x0000McBSP Sample Rate Generator Register 1
Multichannel Control Registers
MCR20x500CR/W0x0000McBSP Multichannel Register 2
MCR10x500DR/W0x0000McBSP Multichannel Register 1
RCERA0x500ER/W0x0000McBSP Receive Channel Enable Register Partition A
RCERB0x500FR/W0x0000McBSP Receive Channel Enable Register Partition B
XCERA0x5010R/W0x0000McBSP Transmit Channel Enable Register Partition A
XCERB0x5011R/W0x0000McBSP Transmit Channel Enable Register Partition B
PCR0x5012R/W0x0000McBSP Pin Control Register
RCERC0x5013R/W0x0000McBSP Receive Channel Enable Register Partition C
RCERD0x5014R/W0x0000McBSP Receive Channel Enable Register Partition D
XCERC0x5015R/W0x0000McBSP Transmit Channel Enable Register Partition C
XCERD0x5016R/W0x0000McBSP Transmit Channel Enable Register Partition D
RCERE0x5017R/W0x0000McBSP Receive Channel Enable Register Partition E
RCERF0x5018R/W0x0000McBSP Receive Channel Enable Register Partition F
XCERE0x5019R/W0x0000McBSP Transmit Channel Enable Register Partition E
XCERF0x501AR/W0x0000McBSP Transmit Channel Enable Register Partition F
RCERG0x501BR/W0x0000McBSP Receive Channel Enable Register Partition G
RCERH0x501CR/W0x0000McBSP Receive Channel Enable Register Partition H
XCERG0x501DR/W0x0000McBSP Transmit Channel Enable Register Partition G
XCERH0x501ER/W0x0000McBSP Transmit Channel Enable Register Partition H
MFFINT0x5023R/W0x0000McBSP Interrupt Enable Register
