8.9.2.1.3.5 ADC Sequential and Simultaneous Timings

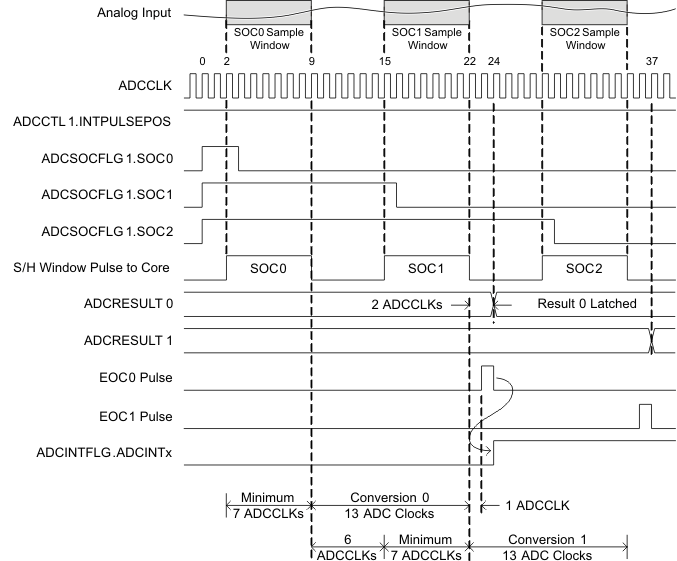

GUID-90EB455E-A7B7-4A60-9DDC-5E82CD310716-low.gifFigure 8-25 Timing Example for Sequential Mode / Late Interrupt Pulse

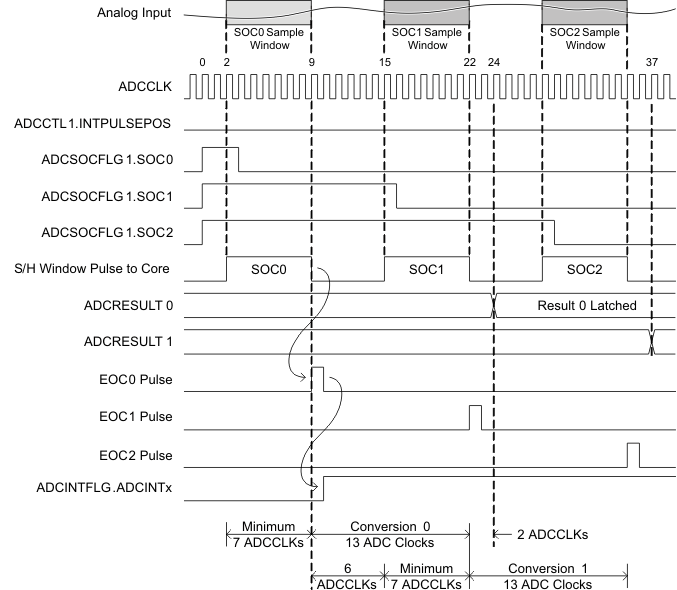

GUID-E14DFCEF-C4A8-4484-9EC0-0B28AA31C2FE-low.gifFigure 8-26 Timing Example for Sequential Mode / Early Interrupt Pulse
GUID-4819EEC2-D979-4B92-9969-813DD932159A-low.gifFigure 8-27 Timing Example for Simultaneous Mode / Late Interrupt Pulse

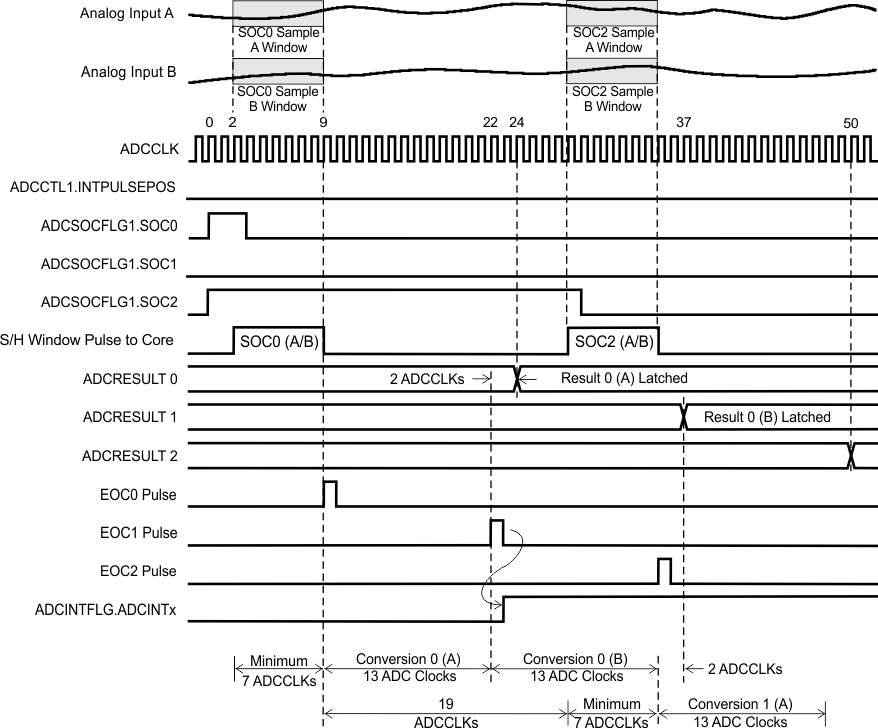

GUID-D9761123-6110-4C16-A920-BC7253F7FDB9-low.gifFigure 8-28 Timing Example for Simultaneous Mode / Early Interrupt Pulse
