10.3.2 Simple 24-V Power Supply Path Protection

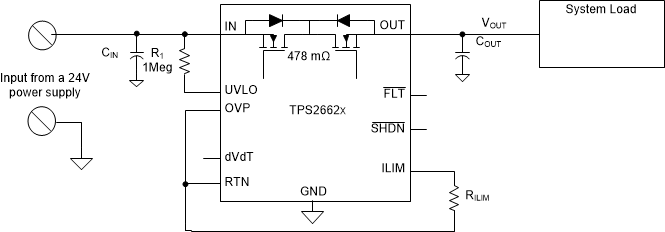

With the TPS2662x, a simple 24-V power supply path protection can be realized using a minimum of four external components as shown in the schematic diagram in Figure 10-14. The external components required are: a 1Meg Ω R(1) resistor across IN and UVLO pins, a R(ILIM) resistor to program the current limit, C(IN) and C(OUT) capacitors.

GUID-E56007F2-5873-4DD6-9C3F-31755203928A-low.gifFigure 10-14 TPS2662x Configured for a Simple 24-V Supply Path Protection

Protection features with this configuration include:

  • Load and device protection from reverse input polarity fault down to –60 V
  • Upstream supply and device protection from reverse output polarity fault down to –(60 – VIN) V with TPS26624 and TPS26625 variants
  • Protection from 60 V from the external SELV supply: overvoltage Clamp at 38 V with TPS26622 and TPS26623 variants
  • Inrush current control with 24 V and 660-µs output voltage slew rate
  • Reverse Current Blocking
  • Accurate current limiting with auto-retry with TPS26621, TPS26623, TPS26625 variants
  • Accurate current limiting with latch-off with TPS26620, TPS26622, TPS26624 variants
