6.8 Timing Diagrams

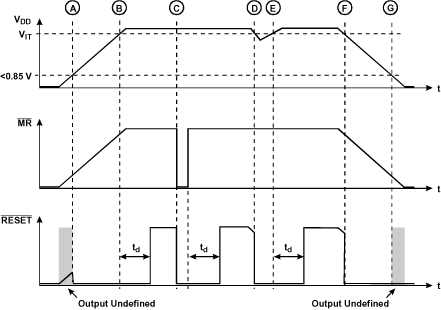

TPS3123-xx TPS3124-xx TPS3125-xx TPS3126-xx TPS3128-xx Timing Diagram TPS3123/5/6/8 Figure 6-1 Timing Diagram TPS3123/5/6/8
TPS3123-xx TPS3124-xx TPS3125-xx TPS3126-xx TPS3128-xx Timing Diagram TPS3123/4/8 Figure 6-2 Timing Diagram TPS3123/4/8
Note: A=Min VDD, B=VDD threshold, C,F,J=Watch Dog timeout, D,E,H=Watch Dog retriggered, G=Manual Reset
