8.2.3 Application Curves

VOUT = 1.0 VL = 300 nHSnubber = 1 nF + 1 Ω
fSW = 325 kHzRDCR = 0.2 mΩRBOOT = 0 Ω
Figure 8-2 Efficiency vs Output Current

VIN = 12 VVOUT = 1.0 VIOUT = 20 A
Figure 8-4 Total-Loop Bode Plot
VIN = 12 VVOUT = 1.0 VIOUT = 20 A
Figure 8-6 Shutdown from CNTL
VIN = 12 VVOUT = 1.0 VIOUT = 15 A to 25 A, 2.5 A/µs
Figure 8-8 Load Transient Response
VIN = 12 VVOUT = 1.0 VIOUT = 20 A
Figure 8-10 VOUT Steady-State Ripple

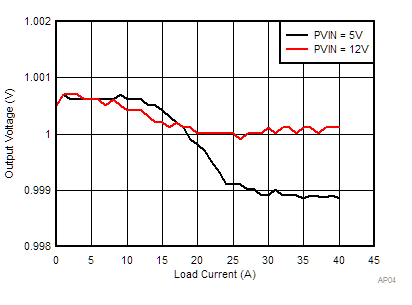

VVIN = 12 VVOUT = 1.0 V
Figure 8-3 Load Regulation
VIN = 12 VVOUT = 1.0 VIOUT = 20 A
Figure 8-5 Start-Up from EN/UVLO
VIN = 12 VVOUT = 1.0 VIOUT = 0 A
Figure 8-7 Shutdown from CNTL
VIN = 12 VVOUT = 1.0 VIOUT = 25 A to 15 A, 2.5 A/µs
Figure 8-9 Load Transient Response
