10.2.3 Application Curves

All plots have been taken with a nominal switching frequency of 2.25 MHz when set to PWM mode, unless otherwise noted. The BOM is according to Table 8-1.

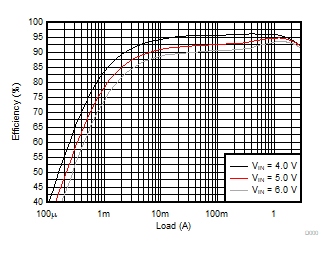

VOUT = 3.3 V PFM TA = 25°C
Figure 10-2 Efficiency Versus Output Current
VOUT = 1.8 V PFM TA = 25°C
Figure 10-4 Efficiency Versus Output Current
VOUT = 1.2 V PFM TA = 25°C
Figure 10-6 Efficiency Versus Output Current
VOUT = 1.0 V PFM TA = 25°C
Figure 10-8 Efficiency Versus Output Current

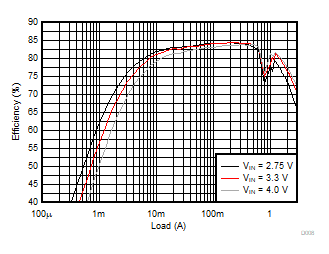

VOUT = 0.6 V PFM TA = 25°C
Figure 10-10 Efficiency Versus Output Current

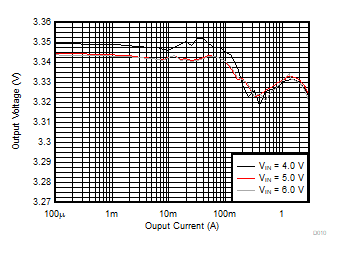

VOUT = 3.3 V PFM TA = 25°C
Figure 10-12 Output Voltage Versus Output Current
VOUT = 1.8 V PFM TA = 25°C
Figure 10-14 Output Voltage Versus Output Current

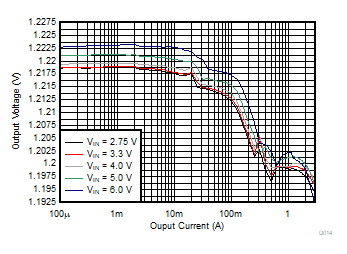

VOUT = 1.2 V PFM TA = 25°C
Figure 10-16 Output Voltage Versus Output Current
VOUT = 1.0 V PFM TA = 25°C
Figure 10-18 Output Voltage Versus Output Current

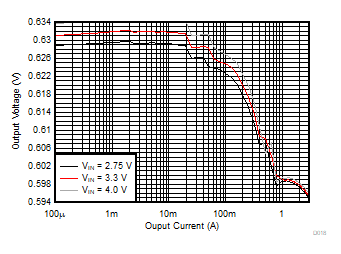

VOUT = 0.6 V PFM TA = 25°C
Figure 10-20 Output Voltage Versus Output Current
VOUT = 3.3 V PFM TA = 25°C
VIN = 5.0 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-22 Load Transient Response
VOUT = 1.8 V PFM TA = 25°C
VIN = 5.0 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-24 Load Transient Response
VOUT = 1.2 V PFM TA = 25°C
VIN = 5.0 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-26 Load Transient Response
VOUT = 1.0 V PFM TA = 25°C
VIN = 5.0 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-28 Load Transient Response
VOUT = 0.6 V PFM TA = 25°C
VIN = 3.3 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-30 Load Transient Response
VOUT = 3.3 V PFM TA = 25°C
IOUT = 0.3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-32 Line Transient Response
VOUT = 1.8 V PFM TA = 25°C
IOUT = 0.3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-34 Line Transient Response
VOUT = 1.2 V PFM TA = 25°C
IOUT = 0.3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-36 Line Transient Response
VOUT = 1.0 V PFM TA = 25°C
IOUT = 0.3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-38 Line Transient Response
VOUT = 0.6 V PFM TA = 25°C
IOUT = 0.3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-40 Line Transient Response
VOUT = 3.3 V PFM TA = 25°C
IOUT = 0.3 A VIN = 5.0 V BW = 20 MHz
Figure 10-42 Output Voltage Ripple
VOUT = 1.8 V PFM TA = 25°C
IOUT = 0.3 A VIN = 5.0 V BW = 20 MHz
Figure 10-44 Ouput Voltage Ripple
VOUT = 3.3 V PWM TA = 25°C
IOUT = 3 A VIN = 5.0 V
Figure 10-46 Start-Up Timing
VOUT = 1.2 V PWM TA = 25°C
IOUT1 = 1 A IOUT2 = 3 A VIN = 5.0 V
Figure 10-48 Start-Up Timing
VOUT = 0.6 V PWM TA = 25°C
IOUT1 = 3 A VIN = 5.0 V
Figure 10-50 Start-Up Timing

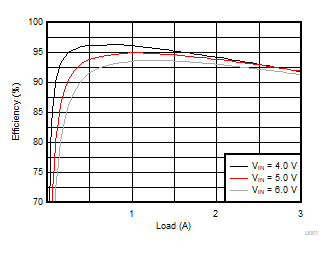

VOUT = 3.3 V PWM TA = 25°C
Figure 10-3 Efficiency Versus Output Current
VOUT = 1.8 V PWM TA = 25°C
Figure 10-5 Efficiency Versus Output Current
VOUT = 1.2 V PWM TA = 25°C
Figure 10-7 Efficiency Versus Output Current
VOUT = 1.0 V PWM TA = 25°C
Figure 10-9 Efficiency Versus Output Current
VOUT = 0.6 V PWM TA = 25°C
Figure 10-11 Efficiency Versus Output Current

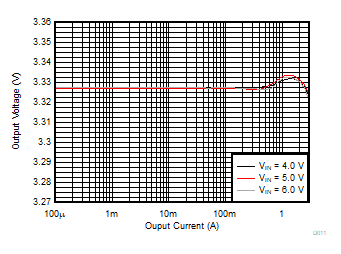

VOUT = 3.3 V PWM TA = 25°C
Figure 10-13 Output Voltage Versus Output Current

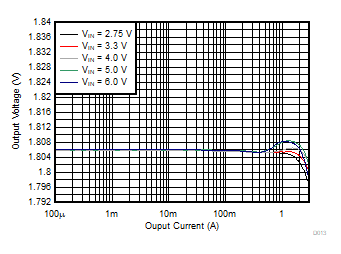

VOUT = 1.8 V PWM TA = 25°C
Figure 10-15 Output Voltage Versus Output Current
VOUT = 1.2 V PWM TA = 25°C
Figure 10-17 Output Voltage Versus Output Current
VOUT = 1.0 V PWM TA = 25°C

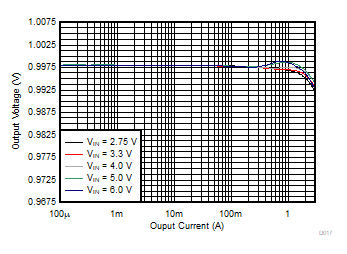

Figure 10-19 Output Voltage Versus Output Current
VOUT = 0.6 V PWM TA = 25°C
Figure 10-21 Output Voltage Versus Output Current
VOUT = 3.3 V PWM TA = 25°C
VIN = 5.0 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-23 Load Transient Response
VOUT = 1.8 V PWM TA = 25°C
VIN = 5.0 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-25 Load Transient Response
VOUT = 1.2 V PWM TA = 25°C
VIN = 5.0 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-27 Load Transient Response
VOUT = 1.0 V PWM TA = 25°C
VIN = 5.0 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-29 Load Transient Response
VOUT = 0.6 V PWM TA = 25°C
VIN = 3.3 V IOUT = 0.2 A to 1.8 A to 0.2 A
Figure 10-31 Load Transient Response
VOUT = 3.3 V PWM TA = 25°C
IOUT = 3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-33 Line Transient Response
VOUT = 1.8 V PWM TA = 25°C
IOUT = 3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-35 Line Transient Response
VOUT = 1.2 V PWM TA = 25°C
IOUT = 3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-37 Line Transient Response
VOUT = 1.0 V PWM TA = 25°C
IOUT = 3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-39 Line Transient Response
VOUT = 0.6 V PWM TA = 25°C
IOUT = 3 A VIN = 4.5 V to 5.5 V to 4.5 V
Figure 10-41 Line Transient Response
VOUT = 3.3 V PWM TA = 25°C
IOUT = 3 A VIN = 5.0 V BW = 20 MHz
Figure 10-43 Output Voltage Ripple
VOUT = 1.8 V PWM TA = 25°C
IOUT = 3 A VIN = 5.0 V BW = 20 MHz
Figure 10-45 Output Voltage Ripple
VOUT = 1.8 V PWM TA = 25°C
IOUT1 = 2 A IOUT2 = 2 A VIN = 5.0 V
Figure 10-47 Start-Up Timing
VOUT = 1.0 V PWM TA = 25°C
IOUT1 = 3 A VIN = 5.0 V
Figure 10-49 Start-Up Timing
