8.2.3 Application Curves

TPS63036 Figure3.gif
VOUT = 2.5 V/ 4.5 V

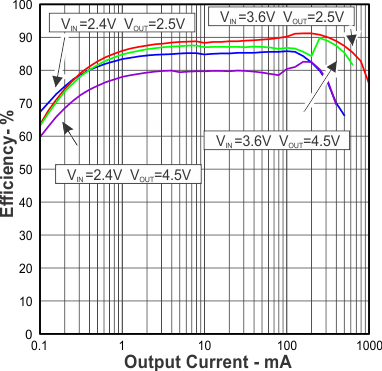

Figure 5. Efficiency vs Output Current – Power-Save Mode Enabled
TPS63036 Figure5.gif
VOUT = 3.3 V
Figure 7. Efficiency vs Output Current – Power-Save Mode Enabled
TPS63036 Figure7.gif
VOUT = 2.5 V, IOUT = 10 mA/100 mA/500 mA
Figure 9. Efficiency vs Input Voltage – Power-Save Mode Enabled
TPS63036 Figure9.gif
VOUT = 3.3 V, IOUT = 10 mA/100 mA/500 mA
Figure 11. Efficiency vs Input Voltage – Power-Save Mode Enabled
TPS63036 Figure11.gif
VOUT = 4.5 V, IOUT = 10 mA/100 mA/500 mA
Figure 13. Efficiency vs Input Voltage – Power-Save Mode Enabled
TPS63036 Figure13.gif
VOUT = 2.5 V
Figure 15. Output Voltage vs Output Current
TPS63036 Figure15.gif
VOUT = 4.5 V
Figure 17. Output Voltage vs Output Current
TPS63036 Figure151.gif
VIN > VOUT, Load Change from 0 mA to 150 mA
Figure 19. Load Transient Response
TPS63036 Figure19.gif
VOUT = 3.3 V, VIN = 2.4 V, RL = 33 Ω
Figure 21. Start-Up After Enable
TPS63036 Figure4.gif
VOUT = 2.5 V/ 4.5 V
Figure 6. Efficiency vs Output Current – Power-Save Mode Disabled
TPS63036 Figure6.gif
VOUT = 3.3 V
Figure 8. Efficiency vs Output Current – Power-Save Mode Disabled
TPS63036 Figure8.gif
VOUT = 2.5 V, IOUT = 10 mA/100 mA/500 mA
Figure 10. Efficiency vs Input Voltage – Power-Save Mode Disabled
TPS63036 Figure10.gif
VOUT = 3.3 V, IOUT = 10 mA/100 mA/500 mA
Figure 12. Efficiency vs Input Voltage – Power-Save Mode Disabled
TPS63036 Figure12.gif
VOUT = 4.5 V, IOUT = 10 mA/100 mA/500 mA
Figure 14. Efficiency vs Input Voltage – Power-Save Mode Disabled
TPS63036 Figure14.gif
VOUT = 3.3 V
Figure 16. Output Voltage vs Output Current
TPS63036 Figure161.gif
VIN < VOUT, Load Change from 0 mA to 150 mA
Figure 18. Load Transient Response
TPS63036 Figure181.gif
VOUT = 3.3 V, IOUT = 150 mA
Figure 20. Line Transient Response
TPS63036 Figure20.gif
VOUT = 3.3 V, VIN = 4.2 V, RL = 33 Ω
Figure 22. Start-Up After Enable
