9.4.1.3 Buck-Boost Operation

When VI is close to VO, the TPS63802 operates in buck-boost mode where all switches are active and the device repeats 3-cycles:

  • TON: Boost-charge phase where boost low-side and buck high-side are closed and the inductor current is built up
  • TOFF: Buck discharge phase where boost high-side and buck low-side are closed and the inductor is discharged
  • TCOM: VI connected to VO where all high-side switches are closed and the input is connected to the output

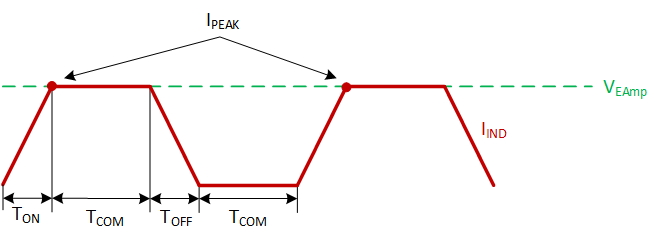

GUID-55487794-F4F8-415C-A15C-D895F6BAF6E5-low.gifFigure 9-8 Peak-Current Buck-Boost Operation
