Refer to the PDF data sheet for device specific package drawings

Mechanical Data (Package|Pins)
  • RAY|24
Thermal pad, mechanical data (Package|Pins)

6.2 Tape and Reel Information

TPS650360-Q1 TPS650361-Q1 TPS650362-Q1 TPS650363-Q1 TPS650364-Q1 TPS650365-Q1 TPS650366-Q1 TPS650367-Q1
Device Package
Type		 Package Drawing Pins SPQ Reel
Diameter (mm)		 Reel
Width W1 (mm)		 A0
(mm)		 B0
(mm)		 K0
(mm)		 P1
(mm)		 W
(mm)		 Pin1
Quadrant
TPS65036601RAYRQ1 VQFN RAY 24 3000 330.0 12.4 3.75 3.75 1.15 8.0 12 Q2
PTPS65036200RAYRQ1 VQFN RAY 24 3000 330.0 12.4 3.75 3.75 1.15 8.0 12 Q2
PTPS65036501RAYRQ1 VQFN RAY 24 3000 330.0 12.4 3.75 3.75 1.15 8.0 12 Q2

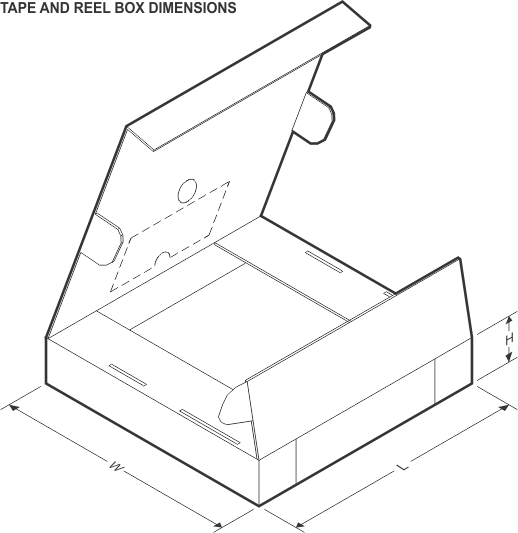

TPS650360-Q1 TPS650361-Q1 TPS650362-Q1 TPS650363-Q1 TPS650364-Q1 TPS650365-Q1 TPS650366-Q1 TPS650367-Q1

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
TPS65036601RAYRQ1 VQFN RAY 24 3000 367.0 367.0 35.0
TPS65036601RAYRQ1 VQFN RAY 24 3000 360.0 360.0 35.0
PTPS65036200RAYRQ1 VQFN RAY 24 3000 367.0 367.0 35.0
PTPS65036200RAYRQ1 VQFN RAY 24 3000 360.0 360.0 36.0
PTPS65036501RAYRQ1 VQFN RAY 24 3000 367.0 367.0 35.0
PTPS65036501RAYRQ1 VQFN RAY 24 3000 360.0 360.0 35.0
