Typical Characteristics

TA = 25°C, VIN = 12 V, fSW = 500 kHz (unless otherwise noted)
TPS65251 eff_1a_lvsaa3.gif
fSW = 500 kHz, VOUT = 3.3 V, L= 4.7 µH, DCR = 28 mΩ
Figure 1. BUCK1 Efficiency
TPS65251 eff_3a_lvsaa3.gif
CO = 22 µF, VOUT = 3.3 V, L = 4.7 µH
Figure 3. BUCK1 Efficiency Low-Power Enabled
TPS65251 eff2_2a_lvsaa3.gif
fSW = 500 kHz, VOUT = 1.8 V, L = 4.7 µH, DCR = 28 mΩ
(Also Applies to Buck 3)
Figure 5. BUCK2 Efficiency
TPS65251 eff3_1a_lvsaa3.gif
VOUT = 2.5 V, L = 4.7 µH, DCR = 28 mΩ
(Also Applies to Buck 2)
Figure 7. BUCK3 Efficiency
TPS65251 BUCK1_LINE REGULATION.gifFigure 9. BUCK1 Line Regulation
TPS65251 BUCK2_LINE REGULATION.gifFigure 11. BUCK2 Line Regulation
TPS65251 BUCK3_LINE REGULATION.gifFigure 13. BUCK3 Line Regulation
TPS65251 eff_2a_lvsaa3.gif
fSW = 500 kHz, VOUT = 1.2 V, L = 4.7 µH, DCR = 28 mΩ
Figure 2. BUCK1 Efficiency
TPS65251 eff2_1a_lvsaa3.gif
fSW = 500 kHz, VOUT = 3.3 V, L = 4.7 µH, DCR = 28 mΩ
(Also Applies to Buck 3)
Figure 4. BUCK2 Efficiency
TPS65251 eff2_3a_lvsaa3.gif
VOUT = 2.5 V, L = 4.7 µF
Figure 6. BUCK2 Efficiency Low-Power Enabled
TPS65251 eff3_2a_lvsaa3.gif
VOUT = 2.5 V, L = 4.7 µF
Figure 8. BUCK3 Efficiency Low-Power Enabled
TPS65251 BUCK1_Load Regulation.gifFigure 10. BUCK1 Load Regulation
TPS65251 BUCK2_Load Regulation.gifFigure 12. BUCK2 Load Regulation

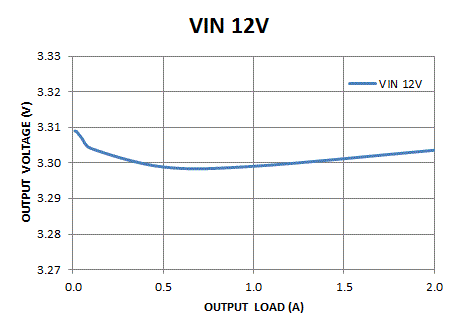

TPS65251 BUCK3_Load Regulation.gifFigure 14. BUCK3 Load Regulation
