11 Layout

11.1 Layout Guidelines

High-speed switches require proper layout and design procedures for optimum performance. Reduce stray inductance and capacitance by keeping traces short and wide. Ensure that bypass capacitors are placed as close to the device as possible. Use large ground planes where possible.

11.2 Layout Example

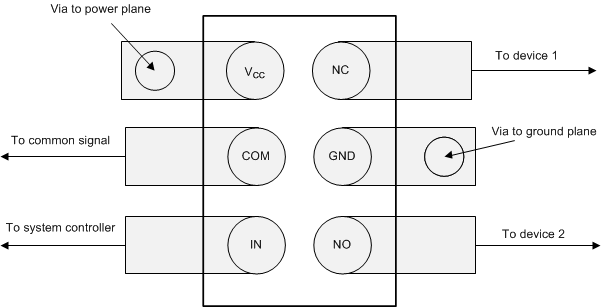

TS5A12301E SCES707_layout.gif Figure 25. TS5A12301E Layout
