6 Parameter Measurement Information

ULN2803C ICEX Test CircuitFigure 6-1 ICEX Test Circuit
ULN2803C II(on) Test CircuitFigure 6-3 II(on) Test Circuit
ULN2803C hFE, VCE(sat) Test CircuitFigure 6-5 hFE, VCE(sat) Test Circuit
ULN2803C VF Test CircuitFigure 6-7 VF Test Circuit
ULN2803C II(off) Test CircuitFigure 6-2 II(off) Test Circuit
ULN2803C VI(on) Test CircuitFigure 6-4 VI(on) Test Circuit
ULN2803C IR Test CircuitFigure 6-6 IR Test Circuit

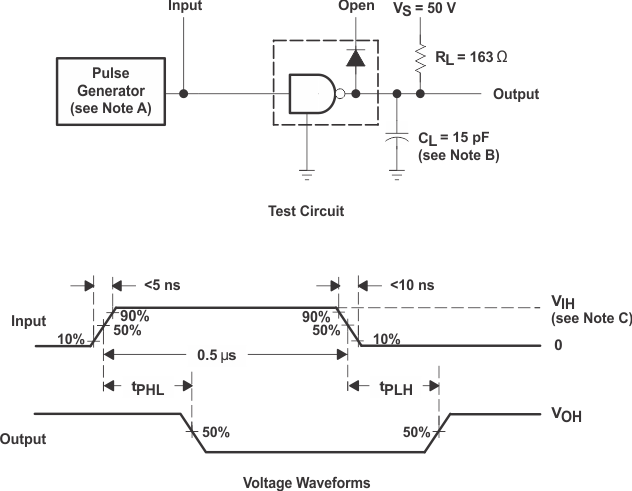

ULN2803C Propagation Delay Times
A. The pulse generator has the following characteristics: PRR = 12.5 kHz, ZO = 50 Ω.
B. CL includes probe and jig capacitance.
C. VIH = 3 V.
Figure 6-8 Propagation Delay Times
ULN2803C Latch-Up Test
A. The pulse generator has the following characteristics: PRR = 12.5 kHz, ZO = 50 Ω.
B. CL includes probe and jig capacitance.
C. VIH = 3 V.
Figure 6-9 Latch-Up Test
