9.11.3 Port P2, P2.0 to P2.2 and P2.4 to P2.7, Input/Output With Schmitt Trigger

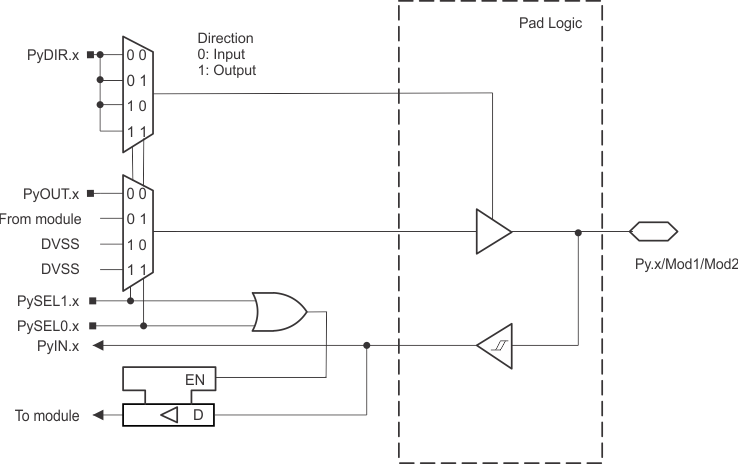

Figure 9-10 shows the pin diagram. Table 9-13 summarizes the selection of the pin function.

Functional representation only.
Figure 9-10 Py.x/Mod1/Mod2 Pin Schematic
Table 9-13 Port P2 (P2.0 to P2.2 and P2.4 to P2.7) Pin Functions
PIN NAME (P2.x)xFUNCTIONCONTROL BITS OR SIGNALS
P2DIR.xP2SEL1.xP2SEL0.x
P2.0/TA1.0/CLKIN0P2.0 (I/O)I: 0; O: 100
TA1.CCI0A001
TA1.01
CLKIN (DCO bypass clock)010
DVSS1
N/A011
DVSS1
P2.1/TA1.11P2.1 (I/O)I: 0; O: 100
TA1.CCI1A001
TA1.11
N/A010
DVSS1
N/A011
DVSS1
P2.2/TA1.22P2.2 (I/O)I: 0; O: 100
TA1.CCI2A001
TA1.21
N/A010
DVSS1
N/A011
DVSS1
P2.4/TA1.0(1)4P2.4 (I/O)I: 0; O: 100
TA1.CCI0B001
TA1.01
N/A010
DVSS1
N/A011
DVSS1
P2.5/TA0.0(1)5P2.5 (I/O)I: 0; O: 100
TA0.CCI0B001
TA0.01
N/A010
DVSS1
N/A011
DVSS1
P2.6/TA0.1(1)6P2.6 (I/O)I: 0; O: 100
N/A001
TA0.11
N/A010
DVSS1
N/A011
DVSS1
P2.7/TA0.2(1)7P2.7 (I/O)I: 0; O: 100
N/A001
TA0.21
N/A010
DVSS1
N/A011
DVSS1
(1) Available only on 32-pin RHB devices.
