6.7 Switching Characteristics

VIN = 24 V, Rload = 24 Ω, over operating free-air temperature range (unless otherwise noted)(1)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
td(on) Turn-on delay time EN rising edge to VOUT = 10%, DIAG_EN high 20 50 µs
td(off) Turn-off delay time EN falling edge to VOUT = 90%, DIAG_EN high 40 80 µs
dV/dt(on) Slew rate on VOUT = 10% to 90%, DIAG_EN high 0.1 0.5 V/µs
dV/dt(off) Slew rate off VOUT = 90% to 10%, DIAG_EN high 0.1 0.5 V/µs
(1) Value specified by design, not subject to production test.
Figure 1. Pin Current and Voltage Conventions
TPS27S100 Image4.gifFigure 2. Output Delay Characteristics

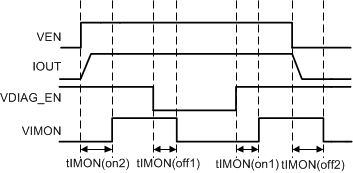

TPS27S100 Image5.gifFigure 3. Current sense Delay Characteristics

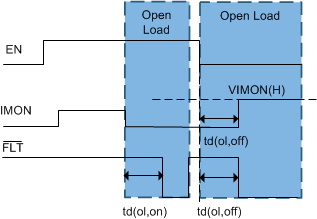

TPS27S100 Image6.gifFigure 4. Open Load Blanking Time Characteristics
