6.8 Typical Characteristics

At TA = 25°C, and VDD = 3.3 V, with both options (TPS386000 and TPS386040) having the same characteristics, unless otherwise noted.
TPS386000 TPS386040 tc_icc-vcc_bvs105.gif
Figure 8. TPS386040 Supply Current vs Supply Voltage
TPS386000 TPS386040 tc_reset-tmp_open_bvs105.gif
Figure 10. TPS386040 (CTn = Open) RESETn Time-out Period vs Temperature
TPS386000 TPS386040 tc_reset-tmp_01uf_bvs105.gif
Figure 12. TPS386040 (CTn = 0.1 µF) RESETn Time-out Period vs Temperature
TPS386000 TPS386040 tc_sense-overdrive_bvs105.gif
See Figure 29 for measurement technique
Figure 14. TPS386040 SENSEn Minimum Pulse Width
vs SENSEn Threshold Overdrive Voltage
TPS386000 TPS386040 tc_sense2-tmp_bvs105.gif
Figure 16. TPS386040 SENSE2 Threshold Voltage vs Temperature
TPS386000 TPS386040 tc_sense4l-tmp_bvs105.gif
Figure 18. TPS386040 SENSE4L Threshold Voltage vs Temperature
TPS386000 TPS386040 tc_vout_low-iout_bvs105.gif
Figure 20. Output Voltage Low vs Output Current
TPS386000 TPS386040 tc_vout_high-iout_bvs105.gif
Figure 22. Output Voltage High vs Output Current
TPS386000 TPS386040 tc_vref-load_18v_bvs105.gif
Figure 24. TPS386040 VREF Output Load Regulation
(VDD = 1.8 V)
TPS386000 TPS386040 tc_vref-load_65v_bvs105.gif
Figure 26. TPS386040 VREF Output Load Regulation
(VDD = 6.5 V)
TPS386000 TPS386040 tc_pin_charge-tmp_bvs105.gif
Figure 28. TPS386040 CT1 to CT4 Pin Charging Current vs Temperature Over CT Pin Voltage
TPS386000 TPS386040 tc_reset-ct_bvs105.gif
Figure 9. TPS386040 RESETn Time-out Period vs CTn
TPS386000 TPS386040 tc_reset-tmp_vcc_bvs105.gif
Figure 11. TPS386040 (CTn = VDD) RESETn Time-out Period vs Temperature

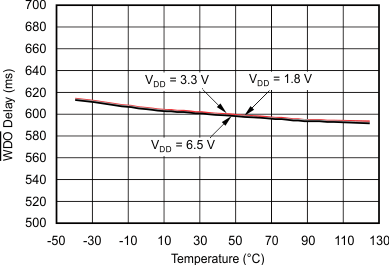

TPS386000 TPS386040 tc_wdo-tmp_bvs105.gif
Figure 13. TPS386040 WDO Time-out Period vs Temperature
TPS386000 TPS386040 tc_sense1-tmp_bvs105.gif
Figure 15. TPS386040 SENSE1 Threshold Voltage vs Temperature
TPS386000 TPS386040 tc_sense3-tmp_bvs105.gif
Figure 17. TPS386040 SENSE3 Threshold Voltage vs Temperature
TPS386000 TPS386040 tc_sense4h-tmp_bvs105.gif
Figure 19. TPS386040 SENSE4H Threshold Voltage vs Temperature
TPS386000 TPS386040 tc_vout_low-tmp_bvs105.gif
Figure 21. Output Voltage Low at 1 mA vs Temperature
TPS386000 TPS386040 tc_vout_high-tmp_bvs105.gif
Figure 23. Output Voltage High at 1 mA vs Temperature
TPS386000 TPS386040 tc_vref-load_33v_bvs105.gif
Figure 25. TPS386040 VREF Output Load Regulation
(VDD = 3.3 V)

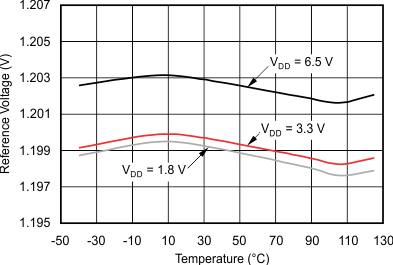

TPS386000 TPS386040 tc_vref-tmp_bvs105.gif
Figure 27. TPS386040 VREF at 0 µA vs Temperature
