8.3.2 Split-Rail Power Supply

The TPS54560B can be used to convert a positive input voltage to a split-rail positive and negative output voltage by using a coupled inductor. Idea applications are amplifiers requiring a split rail positive and negative voltage power supply. For a more detailed example see TI application report, Creating a split-rail power supply with a wide input voltage buck regulator.

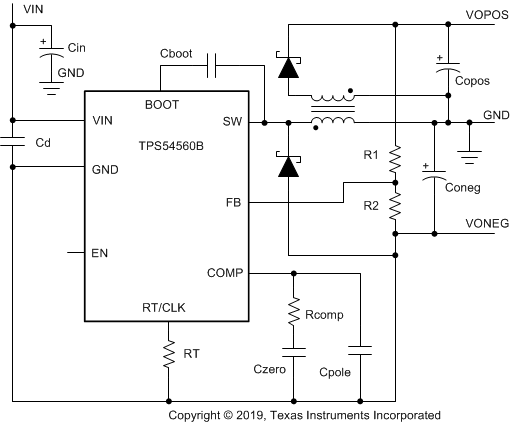

TPS54560B SPLIT560B.gifFigure 56. TPS54560B Split-Rail Power Supply
